By Hohmann & Barnard

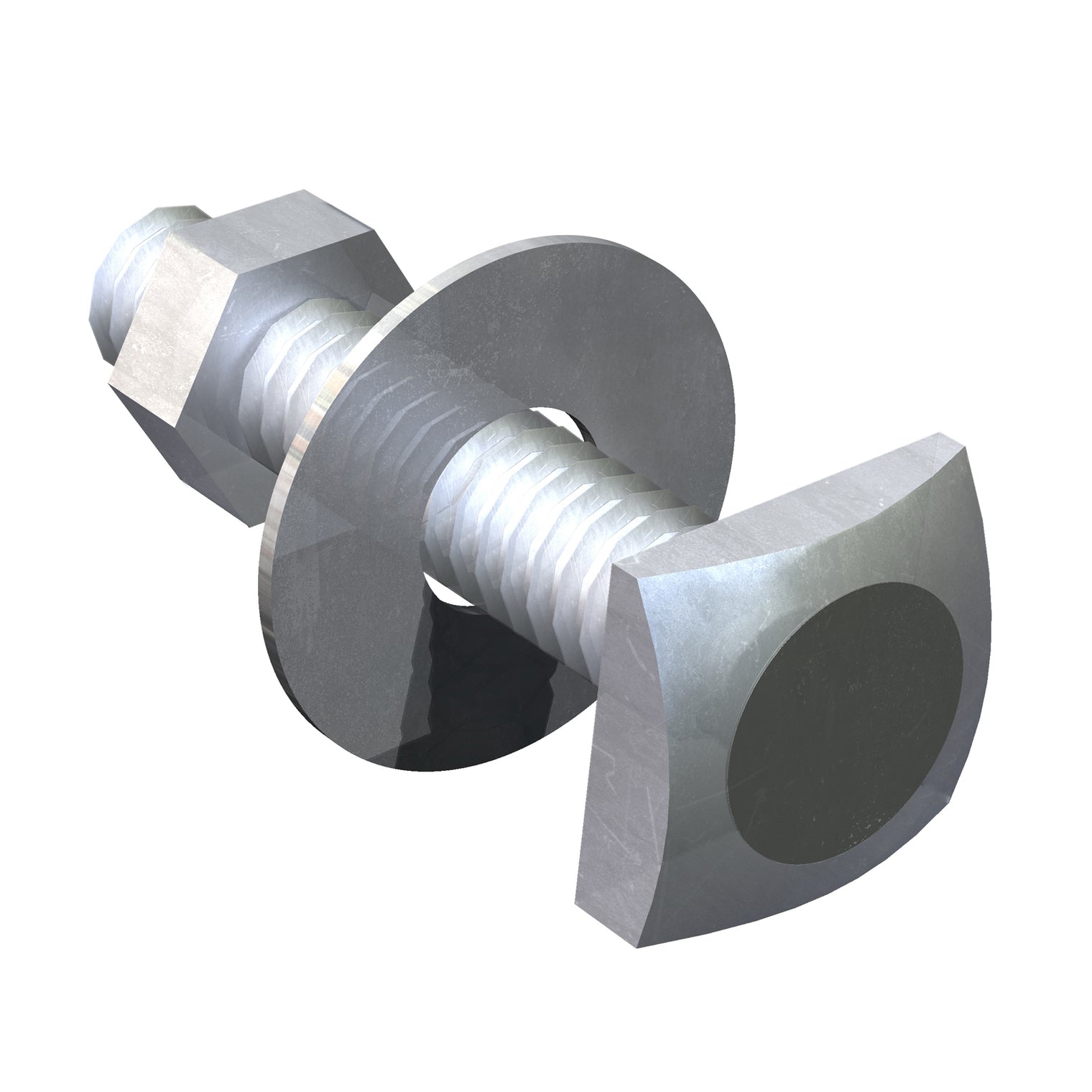

Askew Head Bolt

$5.49
Shipping calculated at checkout.

/per piece

Price shown is per piece. Bundle/increment requirements vary by size — see size variant for details.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

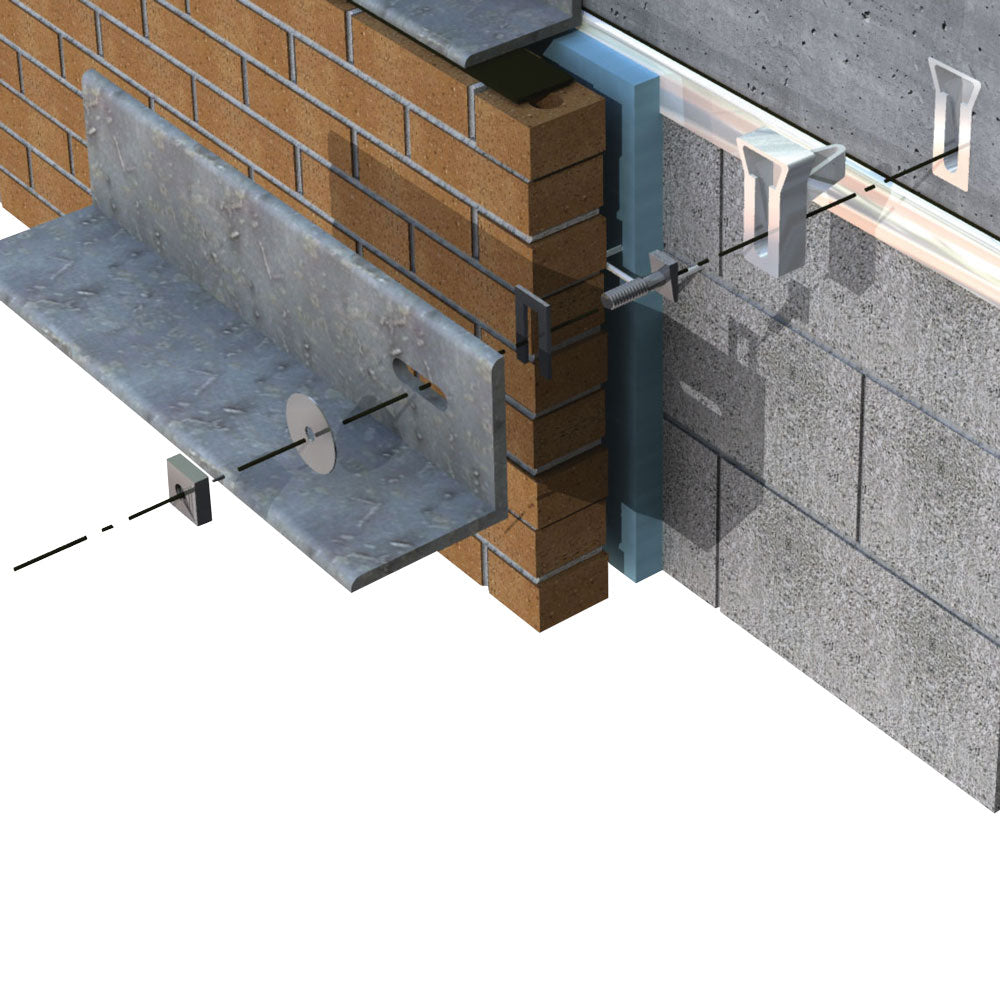

The Askew Head Bolt’s beveled head engages the internal wedge of H&B concrete inserts (LW-340 or HW-340), automatically tightening under load for secure anchorage.

Available Finishes:
  • Type 304 Stainless Steel
  • Type 316 Stainless Steel (Special Order)
  • Hot-Dip Galvanized
Dimensions:
  • Bolt Diameters: ¾″ or ⅝″ (⅝″ only for restoration projects; not for current H&B inserts)
  • Bolt Lengths: 2″, 2½″, 3″, 4″
Performance Data:
  • Carbon Steel: 60,000 psi minimum tensile strength
  • Stainless Steel: 70,000 psi minimum tensile strength
Installation Notes:
  • Designed to work exclusively with H&B inserts (LW-340 or HW-340).
  • Automatic tightening under applied load ensures reliable anchorage.
Hardware material
Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
