By Hohmann & Barnard

305 Dovetail Slot

$5.99
Shipping calculated at checkout.

/per linear foot


SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

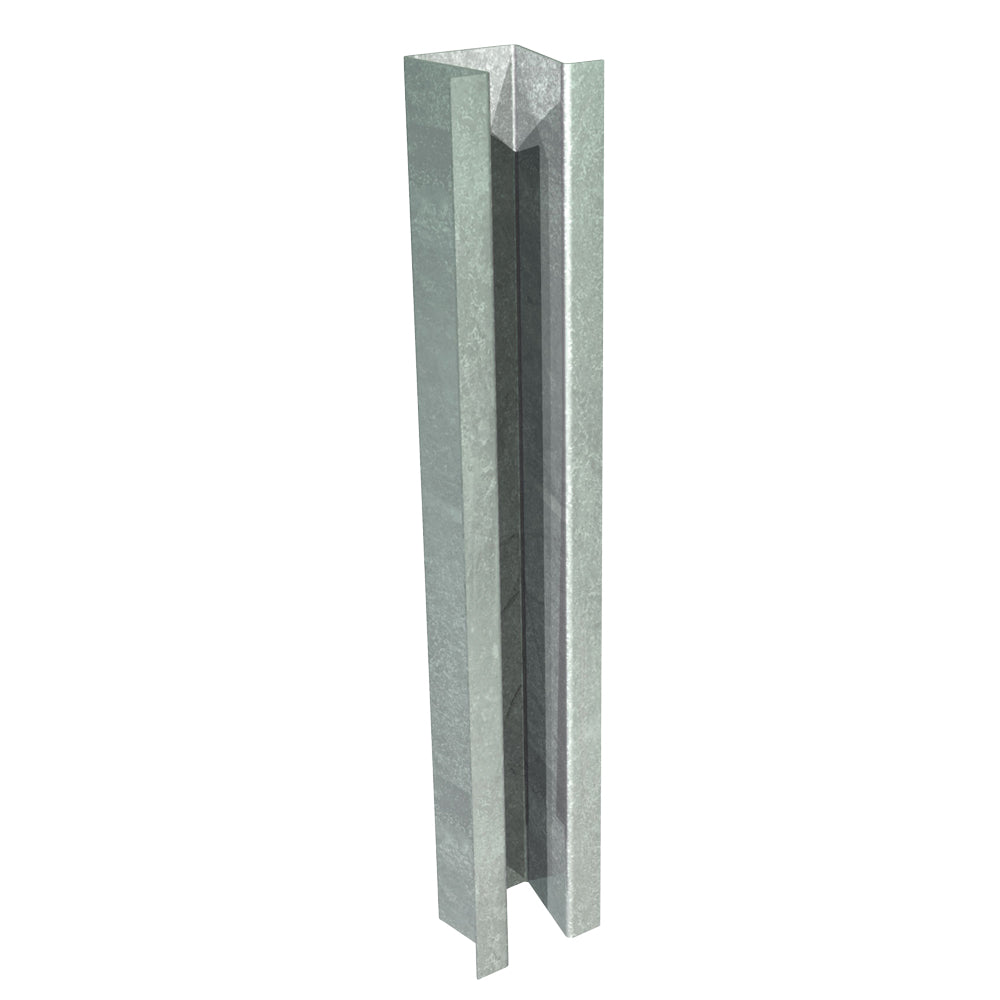

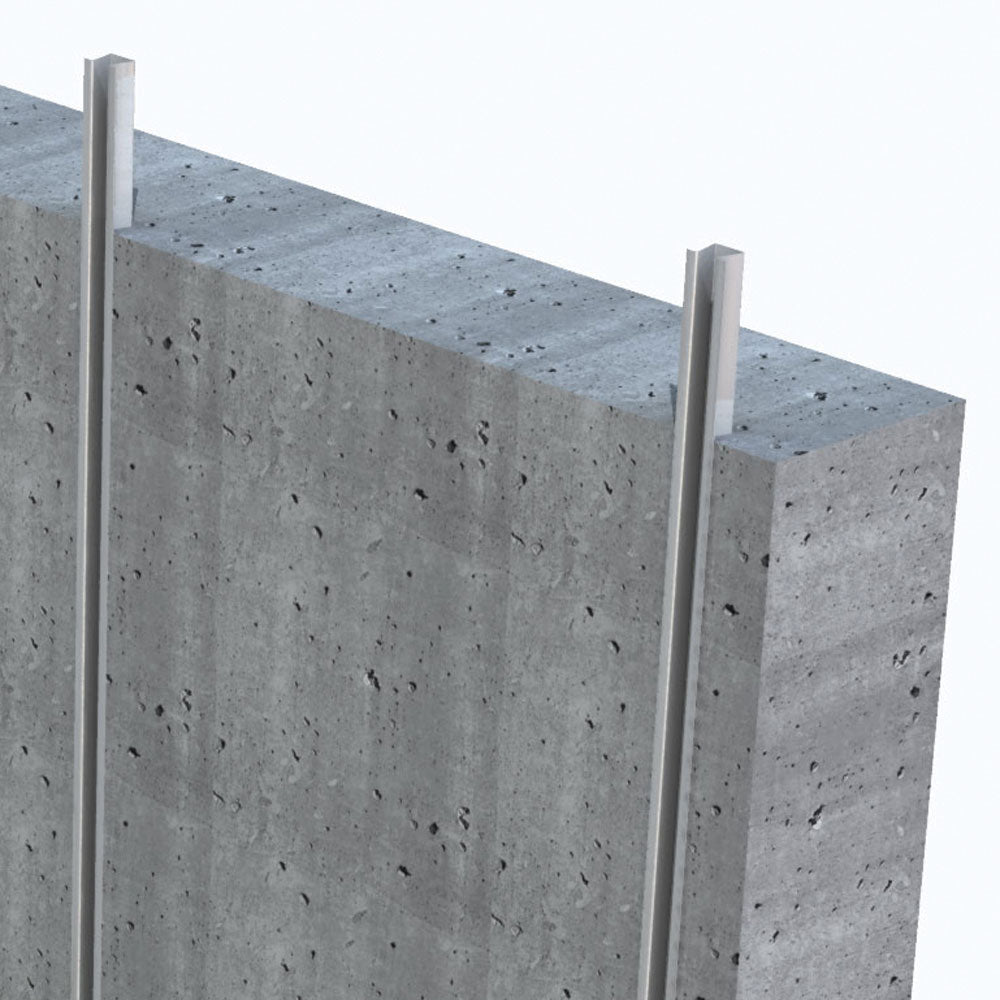

The 305 Dovetail Slot is designed for anchoring masonry veneer to concrete using dovetail ties (e.g., 303-SV Seismic-Notch Dovetail Anchor). Molded from durable steel and foam-filled, it provides a secure channel for dovetail anchors in concrete backup walls.

Key Features:
  • Standard 10' slot lengths, foam-filled for clean installation.
  • Compatible with seismic-notch dovetail anchors for enhanced performance.
  • Robust design prevents slot collapse during anchor insertion.
Dimensions & Gauges:
  • Available Gauges: 22 ga. or 16 ga.
  • Slot Lengths: 10' standard, foam-filled.
  • Hole Diameter: 3/16" Ø
Backup Type:
  • Concrete
Available Finishes:
  • Mill Galvanized
  • Hot-Dip Galvanized
  • Type 304 Stainless Steel
  • Type 316 Stainless Steel (Special Order)
Notes:
  • Not responsible for incompatibility if interchanged with other manufacturers’ ties or slots.
Hardware material
Thickness

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
