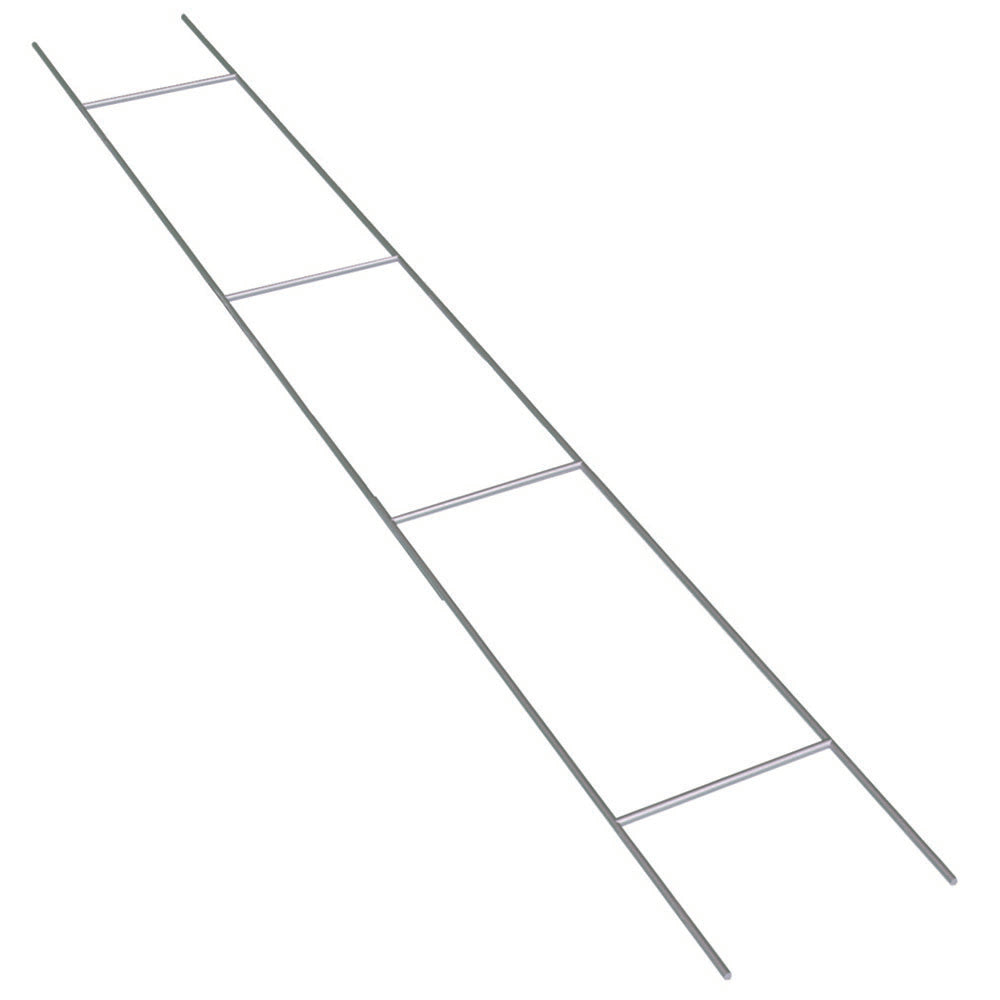

220 Ladder-Mesh Reinforcement

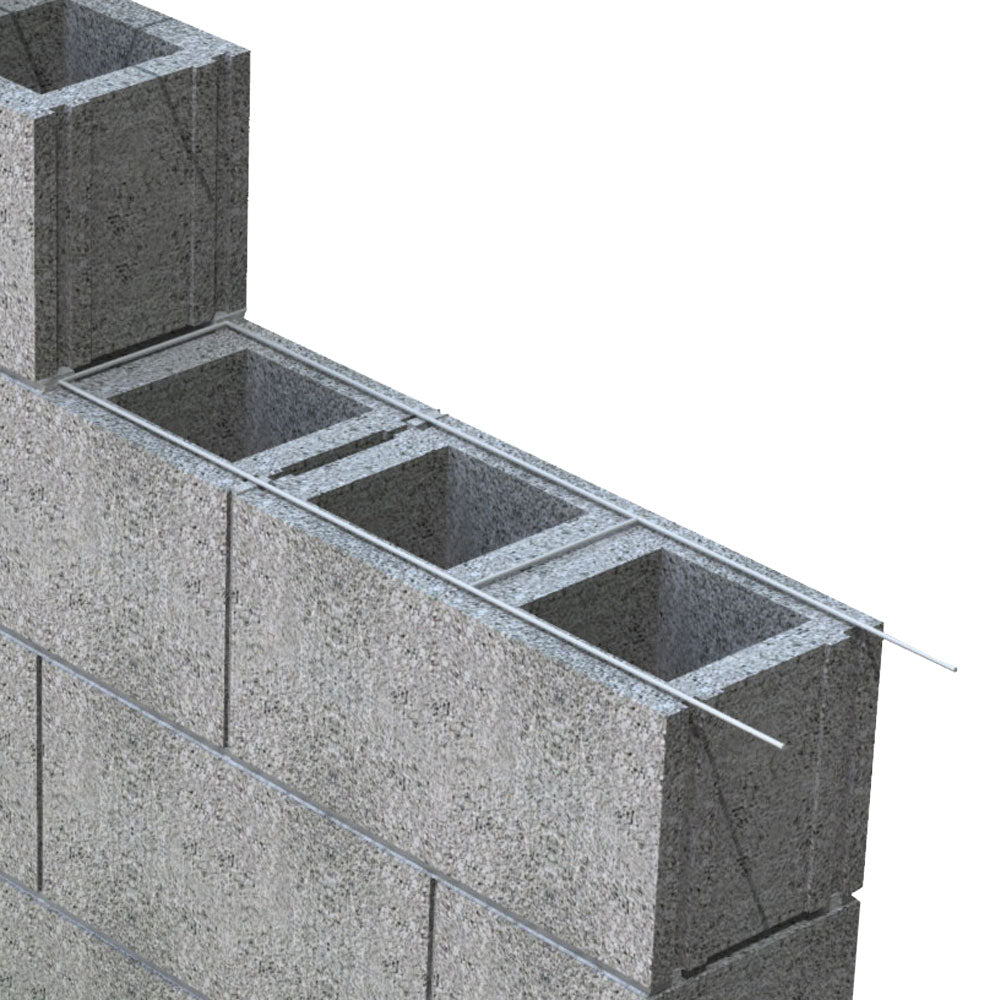

220 Ladder Mesh Reinforcement’s cross rods are spaced so block cells are not obstructed, allowing easy placement of vertical rebars.

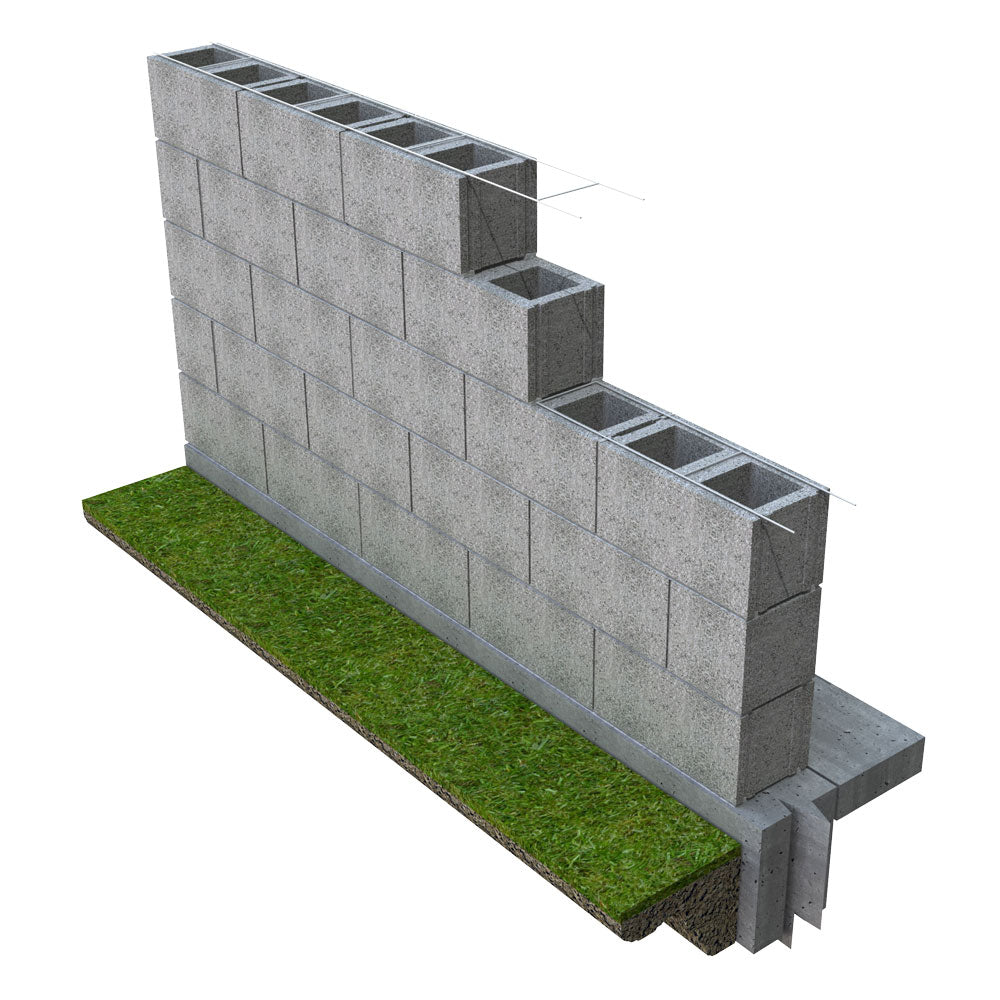

A full 8″ splice between lengths of ladder is facilitated. Hohmann & Barnard’s Lox All® Truss-Mesh and Lox All® Ladder-Mesh are continuous lengths of joint reinforcement embedded into the horizontal mortar joints of masonry walls. Joint reinforcement has long proven necessary for superior masonry wall performance.

• Greatly reduces cracking from thermal stresses, enhancing resistance to water penetration by controlling cracks.
• Increases lateral flexural strength.
• Bonds exterior and interior masonry wythes together in composite or cavity walls, and at intersecting walls and corners.
• Increases elasticity and performance of masonry walls under various stresses.

• Butt-welding of cross rods to longitudinal rods (≤ 16″ o.c.) enhances bonding, eliminates rod projection, and prevents excessive wire buildup in mortar joints.
• Continuous deformation along each longitudinal rod for superior bonding performance.
• Conforms to ASTM A951 standard specification for masonry joint reinforcement.
• Effective Area of Horizontal Joint Reinforcement for Hohmann & Barnard Continuous Systems Chart (PDF)

• Packed 250′ per bundle (25 pcs. – 10′ long)
• Corners and Tees packed 25 pcs. per bundle

• Single Wythe

• (S) Standard: 9 Gauge side rods × 9 Gauge cross rods
• (EH) Extra Heavy: 3/16″Ø side rods × 9 Gauge cross rods
• (SHD) Super Heavy Duty: 3/16″Ø side rods × 3/16″Ø cross rods

• 4″
• 6″
• 8″
• 10″
• 12″
• 14″
• 16″

• Mill Galvanized
• Hot-Dip Galvanized
• Type 304 – Stainless Steel
• Type 316 – Stainless Steel (Special Order)

• 10′ (Standard Length)
