2-Seal™ Thermal Concrete Wing Nut Anchor
$3.98
(
/
)
Unavailable
Shipping calculated at checkout.
/per piece
Price shown is per piece; sold only in boxes of 175 pieces. Orders must be in multiples of 175.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

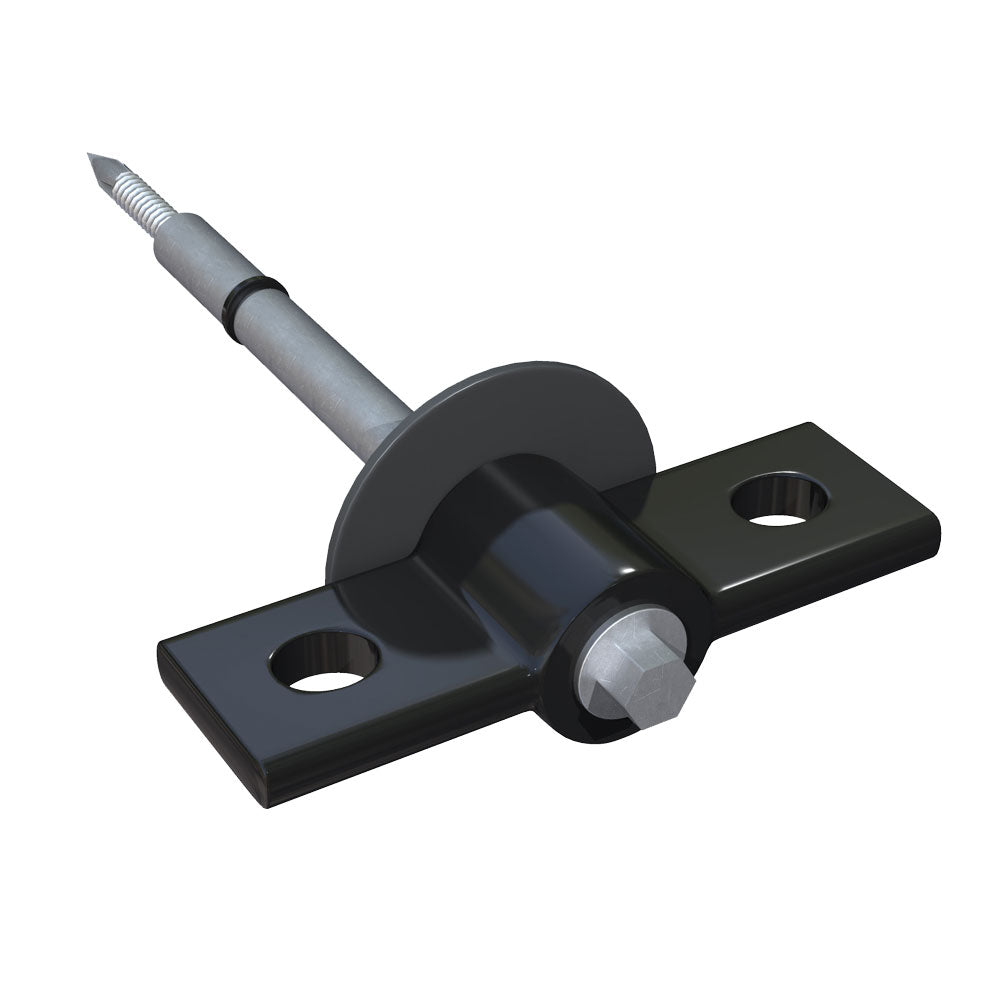

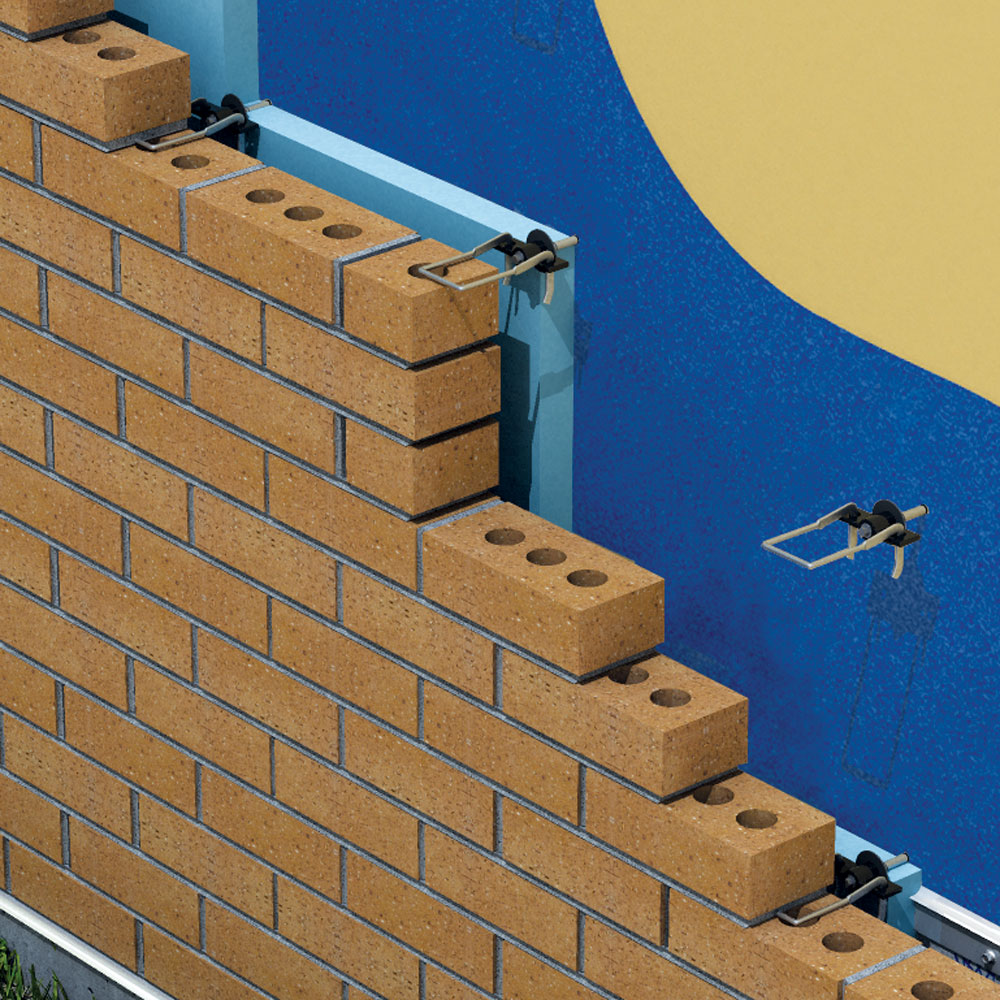

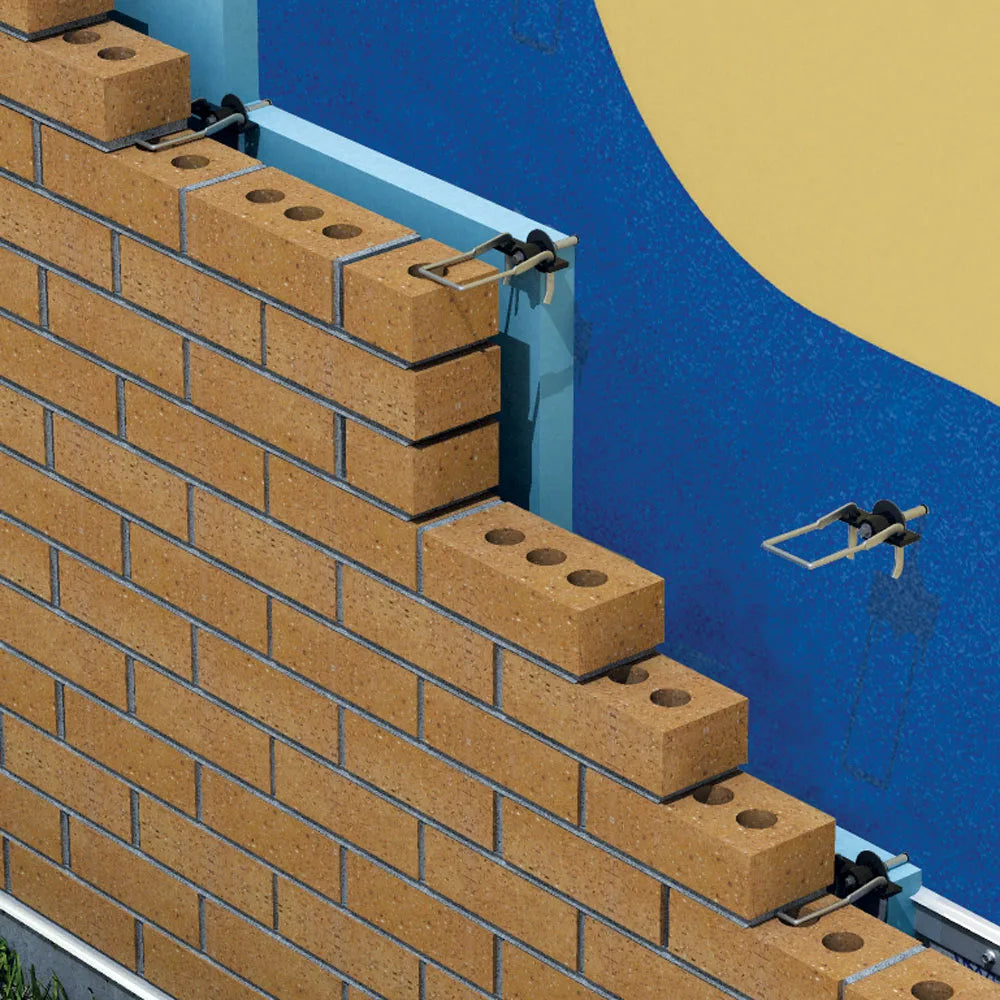

The Thermal Concrete 2-Seal™ Wing Nut Anchor is an innovative single-screw veneer tie for concrete, CMU, or wood stud construction. A dual-diameter barrel with factory-installed EPDM washers seals both the insulation face and the air/vapor barrier. Its Thermal Wings are engineered to reduce thermal transfer through rigid insulation for improved energy efficiency.
Superior Performance:- Thermal Wings: steel encapsulated in plastic to create a thermal break.
- Plastic components are highly flame resistant.
- Accepts a 2X-HOOK™ or Seismic 2X-HOOK™ and allows pintles/hooks to orient parallel to masonry joints.
- Provides up to 1/2" inward adjustability to accommodate variations in wall thickness.
- Stainless steel barrels have significantly lower thermal conductivity vs. carbon steel or zinc.
- Easy installation with a 5/16” hex head using a standard hex socket.
- Seismic-zone compatible when used with 9 ga or 3/16" continuous wire and a 2X-HOOK™ Seismic Pintle (SH).
- Compressed leg 2X-HOOK™ tested to withstand over 200-lbf in tension or compression at the maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4".
- Exceeds BIA recommendations and outperforms standard “round wire” hooks or pintles by over 100%.
- 2X-HOOK™ can be installed with legs pointing up or down.
- Available Sizes: 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6" (equal to insulation thickness)
- Vertical Adjustability: 1-1/4" or 2-1/4"
- Pre-drill a 5/32" (4 mm) hole into concrete, CMU, or masonry backup to a depth of 2" (51 mm).
- Recommended spacing: 16" × 16".
- Brick
- Concrete
- CMU
- Wood Stud
- 1"
- Type 304 Stainless Steel Barrel with Polymer-Coated Screw
- U.S. Patent No. 7,415,803
- 2X-Hook: U.S. Patent No. 8,613,175
