2-Seal™ Concrete Seal Tie

$1.21
Shipping calculated at checkout.

/per piece

Price shown is per piece; sold only in boxes of 125 pieces. Orders must be in multiples of 125.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

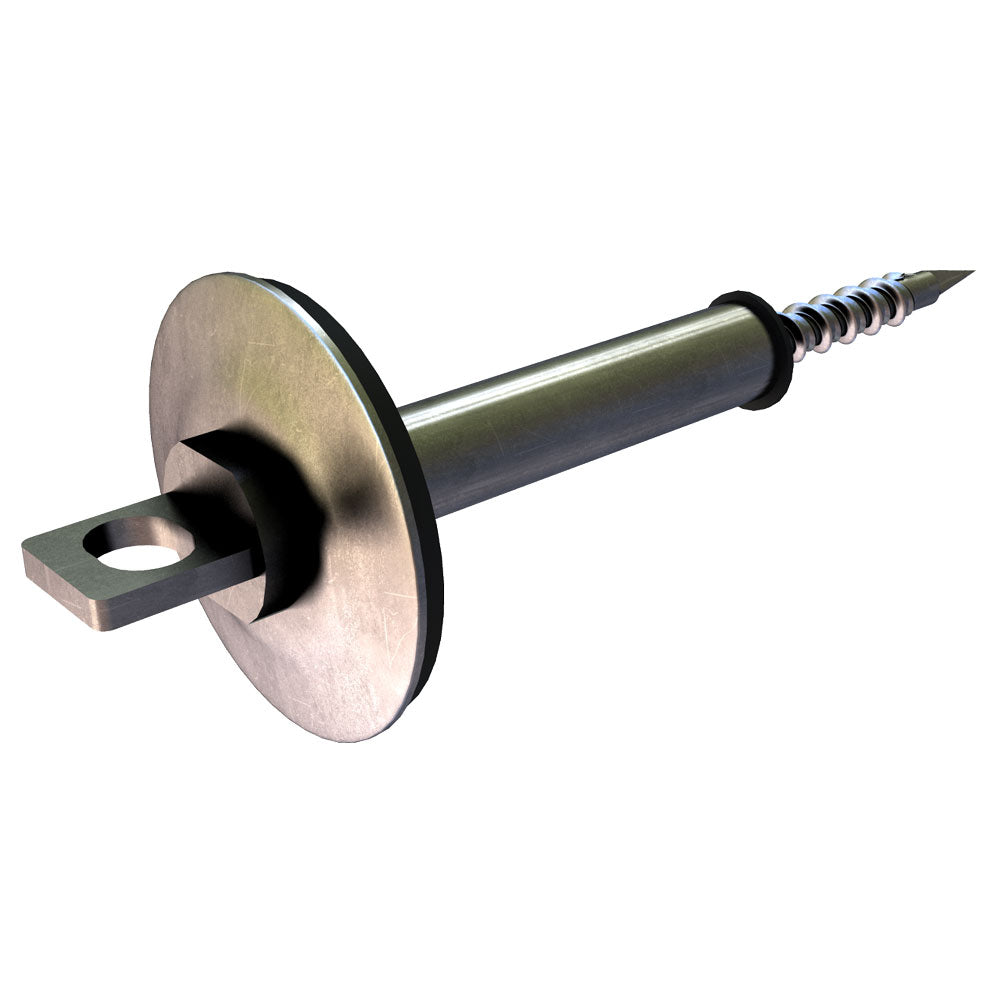

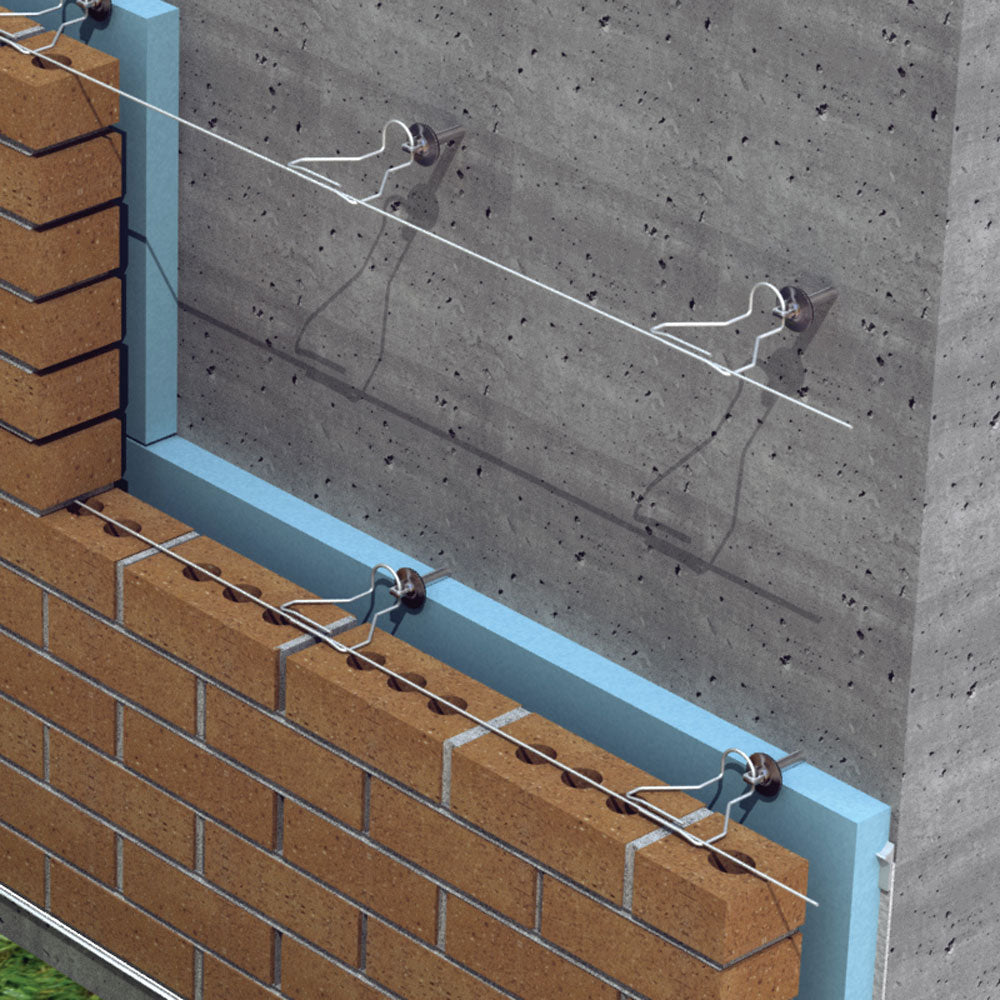

The 2-Seal™ Concrete Tie is a versatile masonry veneer tie designed for secure attachment to concrete, CMU, brick, or wood stud backup. Its specially engineered screw portion with alternating threads delivers superior holding power across multiple substrates, while factory-installed EPDM sealing washers prevent moisture infiltration.

Key Features:
  • Alternating thread pattern for enhanced grip in various backup materials.
  • EPDM sealing washers for superior moisture resistance.
  • Accepts 3/16" × 3", 4", or 5" 2-Seal™ Byna-Lok™ Wire Ties.
  • Compatible with seismic zones when used with 9 ga. or 3/16" continuous wire.
  • Quick installation with 2-Seal™ Chuck Adapter.
Dimensions & Sizes:
  • Vertical Adjustability: 1¼"
  • Available Lengths: 5/8", 1", 1½", 2", 2½", 3", 3½", 4", 4½", 5"
Backup Types:
  • Concrete
  • CMU
  • Brick
  • Wood Stud
Minimum Air Space Requirement:
  • ¾"
Available Finishes:
  • Polymer Coated with Zinc Alloy Barrel
  • For Stainless Steel, see Thermal Concrete 2-Seal™ Wing Nut Anchor
Installation Notes:
  • Predrill 5/32" (4 mm) hole to 2" (51 mm) depth.
  • Recommended spacing: 16" × 16".
  • 2-Seal™ Chuck Adapter required for installation.
Patent Information:
  • Patents Pending
Material
Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
