By Hohmann & Barnard

2-Seal™ Tie

$1.02
Shipping calculated at checkout.

/per piece

Price shown is per piece; sold only in boxes of 125 pieces. Orders must be in multiples of 125.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

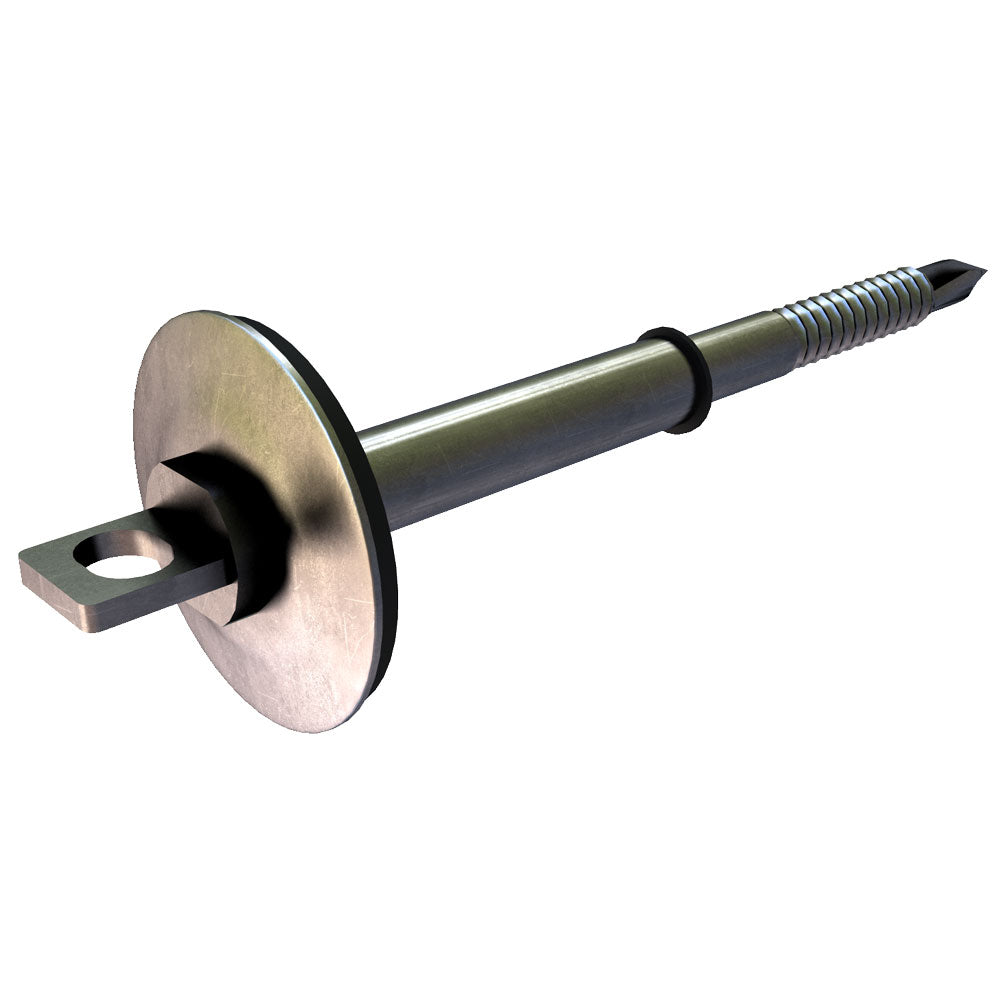

The 2-Seal™ Tie is an innovative single-screw veneer tie for metal stud construction. Fabricated from carbon steel with a premium organic polymer coating, it has a dual-diameter barrel with factory-installed EPDM washers to seal both the insulation face and the air/vapor barrier—unlike single-barrel types that only seal at the insulation.

Key Features:
  • Integrated #12 screw in a dual-diameter barrel for superior sealing.
  • EPDM washers on both faces to prevent air and moisture infiltration.
  • Barrel lengths from 5/8″ to 6½″ to accommodate insulation or wallboard thickness.
  • Polymer-coated carbon steel construction for corrosion resistance.
Installation Notes:
  • Requires 2-Seal™ Chuck Adapter for secure installation.

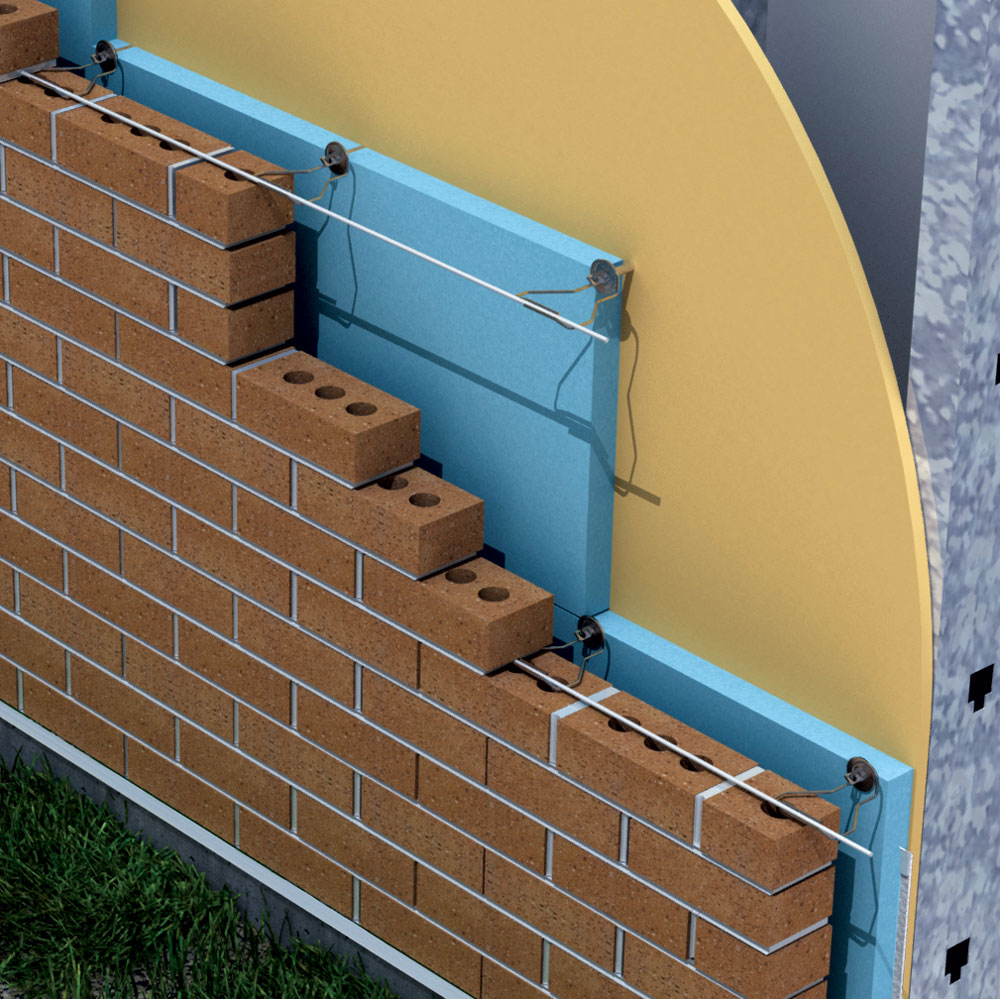

  • Accepts a 3/16″ × 3″, 4″ or 5″ 2-Seal™ Byna-Lok™ Wire Tie (for masonry veneer mortar joint).
  • Adaptable for seismic zones with 9 ga. or 3/16″ continuous wire dropped into the tie’s integral track.
Dimensions & Sizes:
  • Vertical Adjustability: 1¼″
  • Available Lengths: 5/8″, 1″, 1½″, 2″, 2½″, 3″, 3½″, 4″, 4½″, 5″, 5½″, 6″, 6½″
Backup Types:
  • Metal Stud
Available Finishes:
  • Polymer Coated with Zinc Alloy Barrel
  • For Stainless Steel version, see Thermal 2-Seal™ Wing Nut Anchor
Patent Information:
  • U.S. Patent No. 8,037,653
  • Canadian Patent No. 2,690,819
Material
Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
