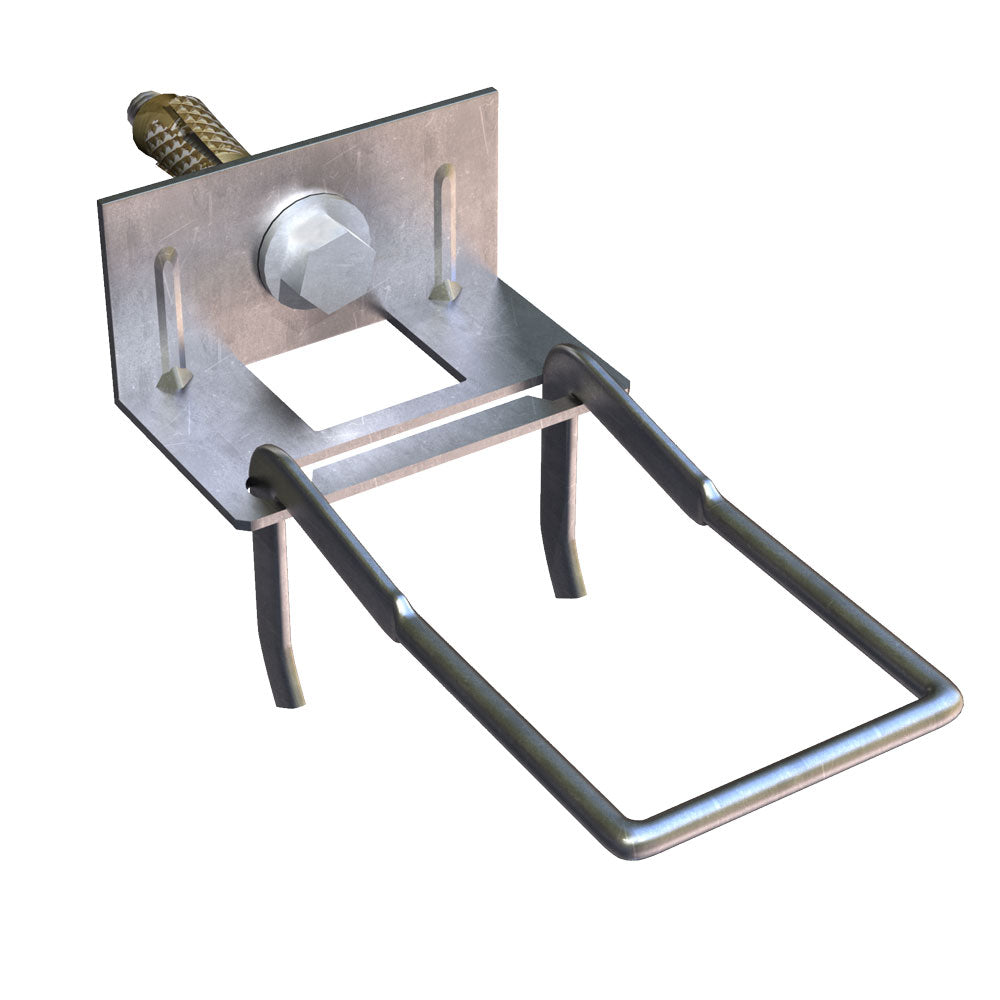

HB-5213 Adjustable Veneer Anchors

$1.75
Shipping calculated at checkout.

/per linear foot

Sold by the linear foot in 500-ft increments.
PRODUCT SPECIFICATIONS

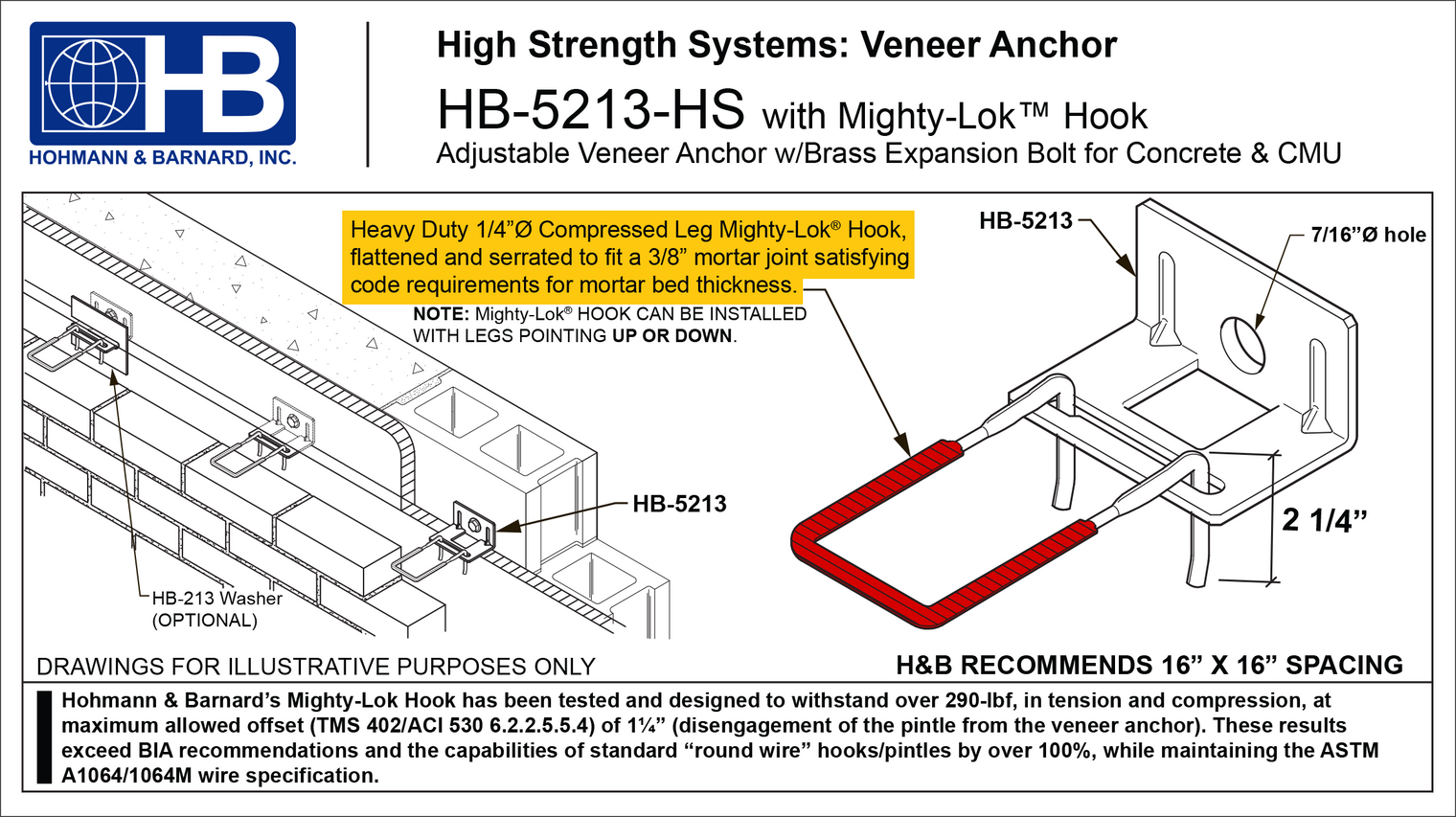

The HB-5213 Adjustable Veneer Anchor is designed to securely anchor masonry to concrete, block, or brick while accommodating rigid insulation up to 6″ (75 mm) thick. Engineered for superior performance, the system features the innovative compressed-leg 2X-HOOK™, tested to withstand over 200-lbf in tension or compression at the maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4″, exceeding BIA recommendations and outperforming standard round-wire pintles by over 100%.

Superior Strength & Performance:
  • Withstands over 200-lbf in both tension and compression.
  • Exceeds BIA recommendations for masonry anchoring systems.
  • 1-1/4″ maximum allowable eccentricity ensures secure attachment.
Optimized Design for Stability:

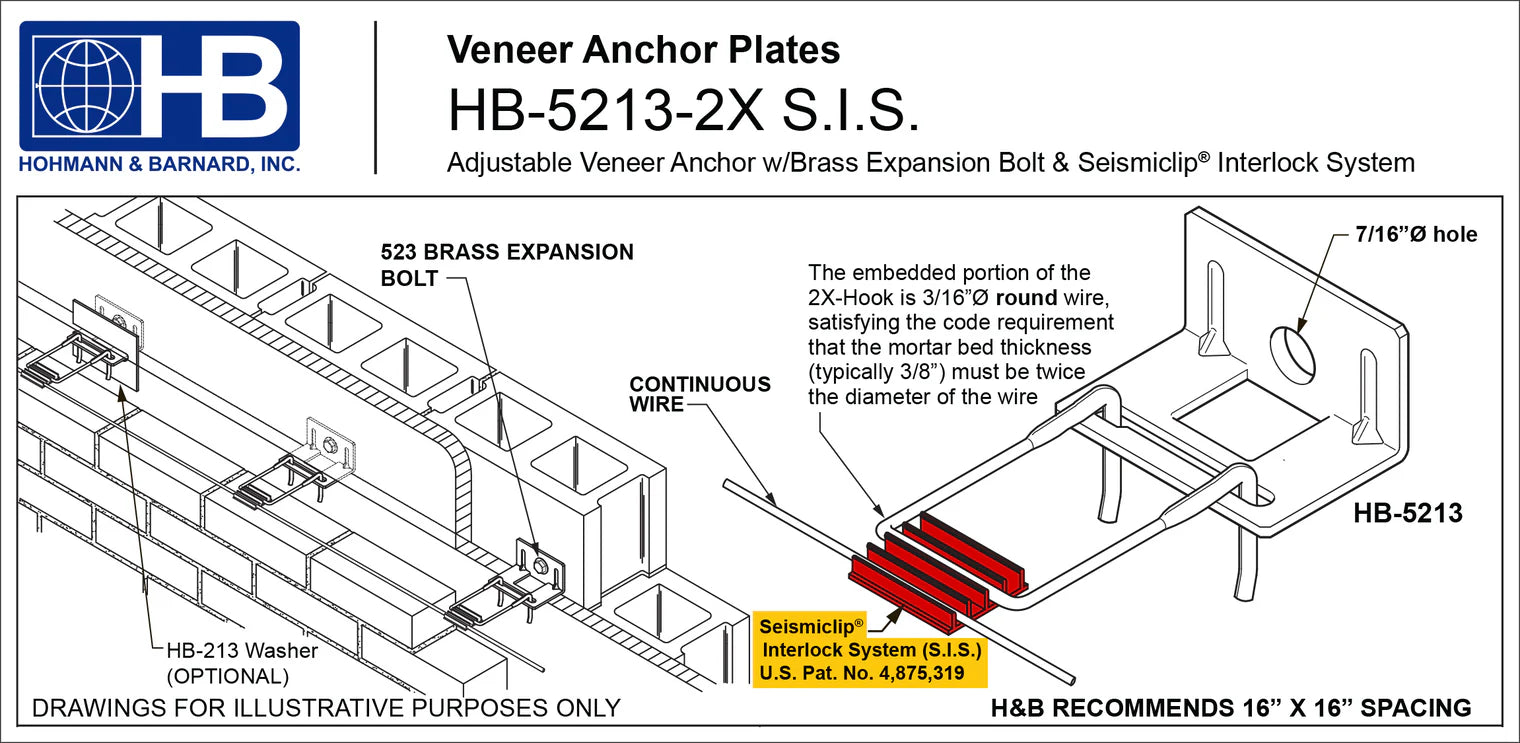

  • 7/16″ Ø hole designed for use with 523 Brass Expansion Bolt.
  • Eyelets prevent excessive in-and-out movement beyond tolerance limits.

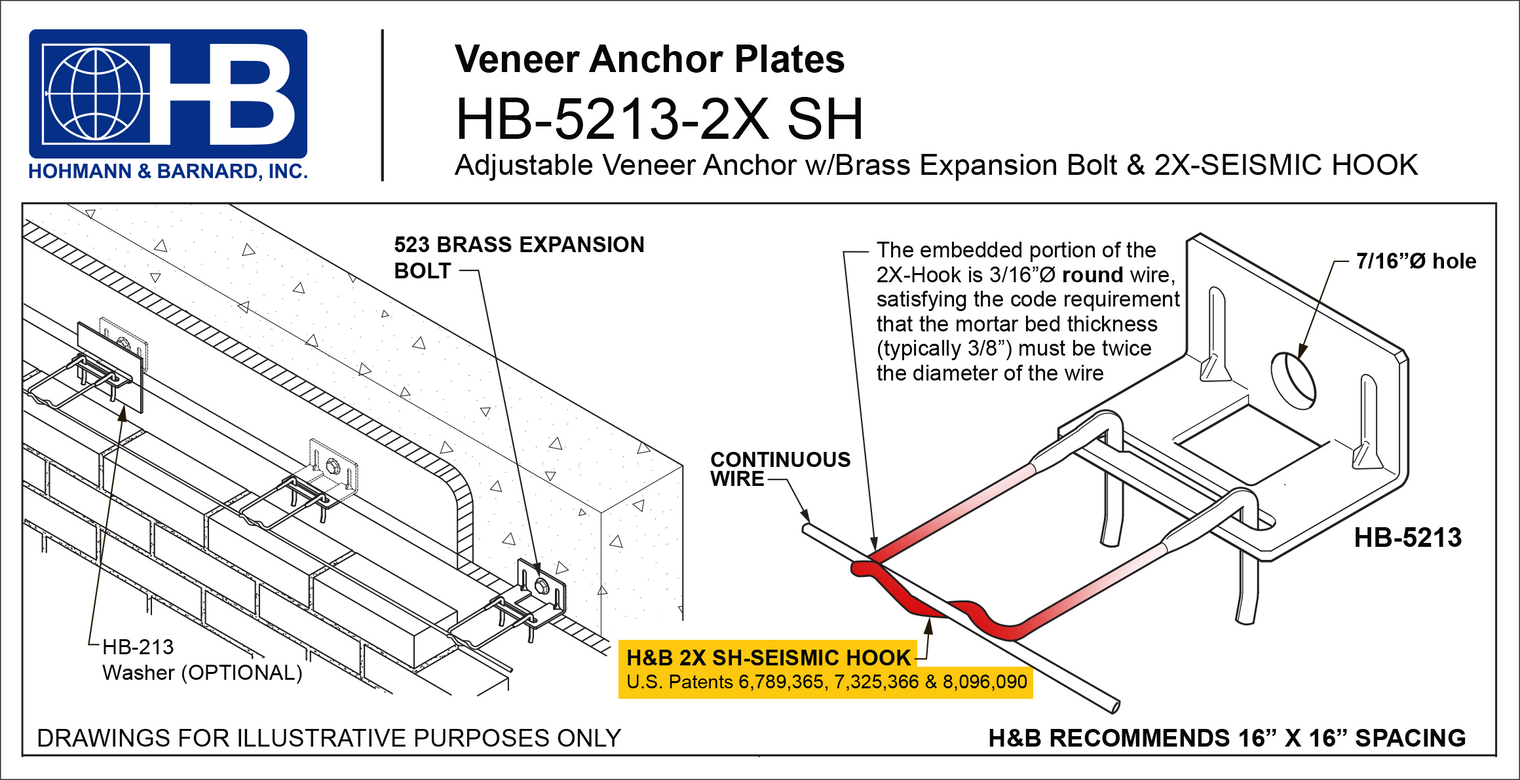

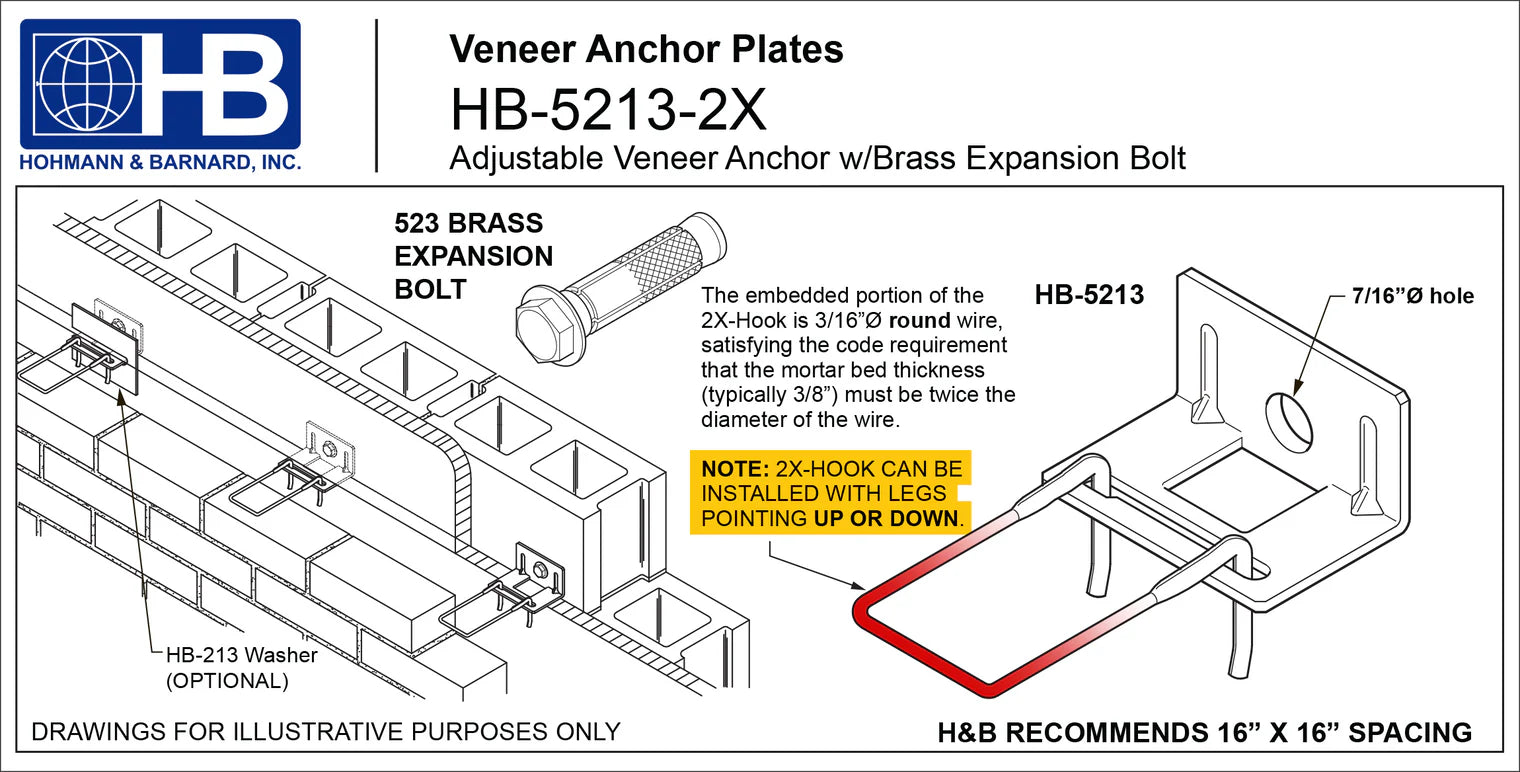

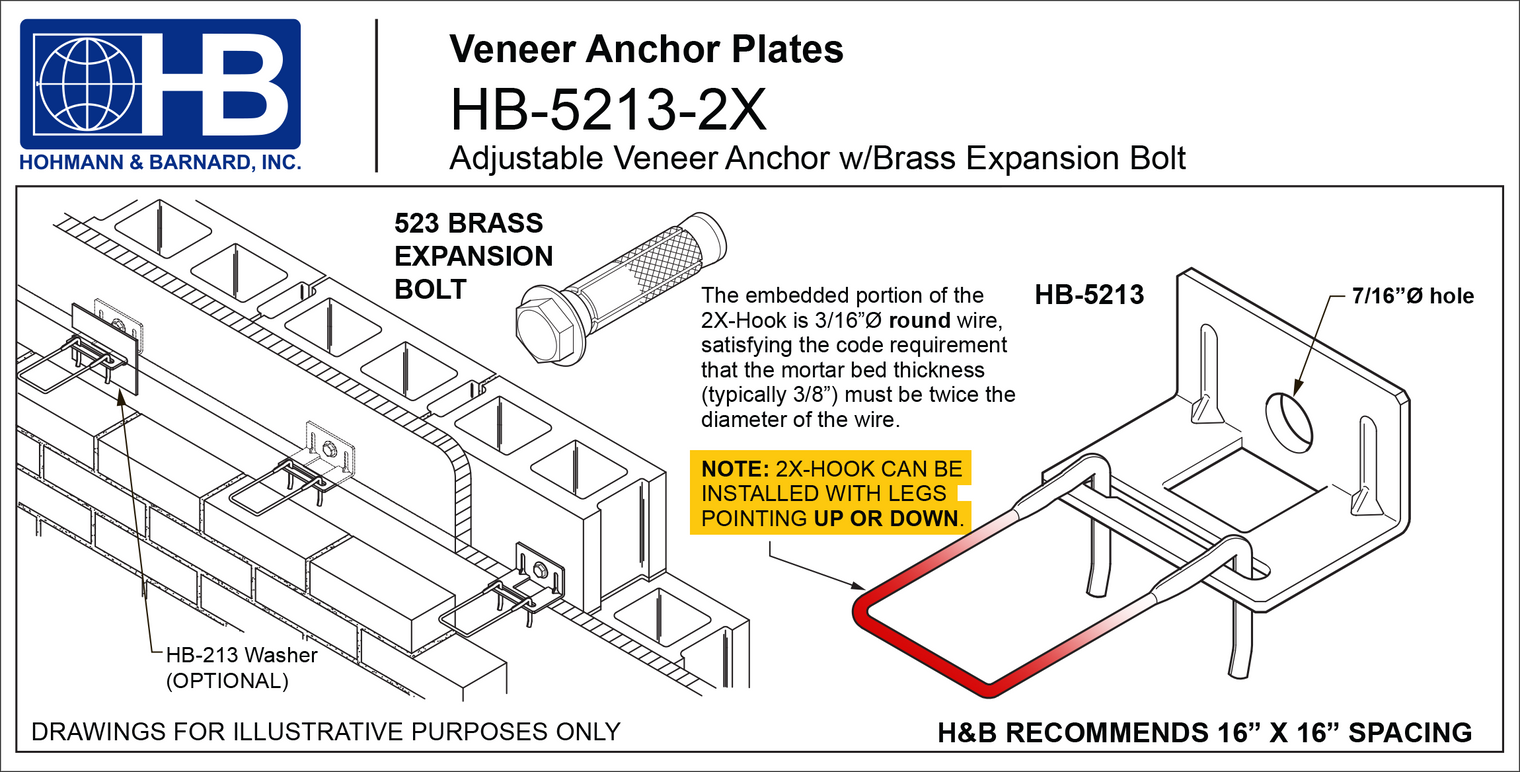

  • 2X-HOOK™ embedded portion meets ACI mortar joint code requirements.
Flexible Installation & Application:

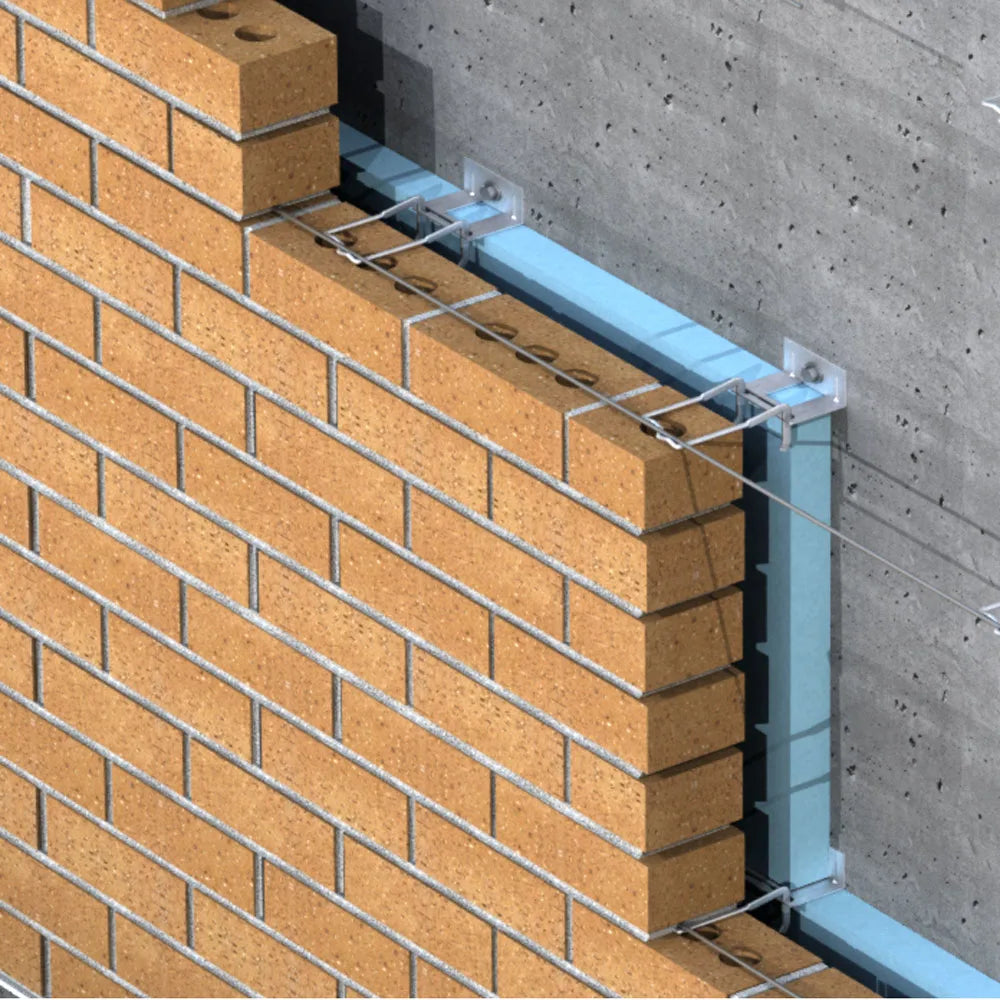

  • Suitable for masonry, brick, CMU, and concrete backup walls.
  • Legs can be installed pointing either up or down.
  • Optional HB-213 Washer available for insulation retention support.
Vertical Adjustability:
  • 1-1/4″
Hole Diameter:
  • 7/16″ Ø
Material & Available Finishes:
  • Hot-Dip Galvanized
  • Type 304 Stainless Steel
  • Type 316 Stainless Steel (Special Order)
Thickness/Gauge:
  • 12 Gauge
  • 14 Gauge
Backup Wall Types:
  • Brick
  • Concrete
  • CMU
Sizes Available:
  • 0″, 1″, 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″, 4″, 4-1/2″, 5″, 5-1/2″, 6″
Minimum Air Space Requirement:
  • 3/4″
Hardware material
Gauge
Sizes

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
