By Hohmann & Barnard

120 Truss-Mesh Reinforcement

$0.53
Shipping calculated at checkout.

/per linear foot

Sold by the linear foot in 500ft increments.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

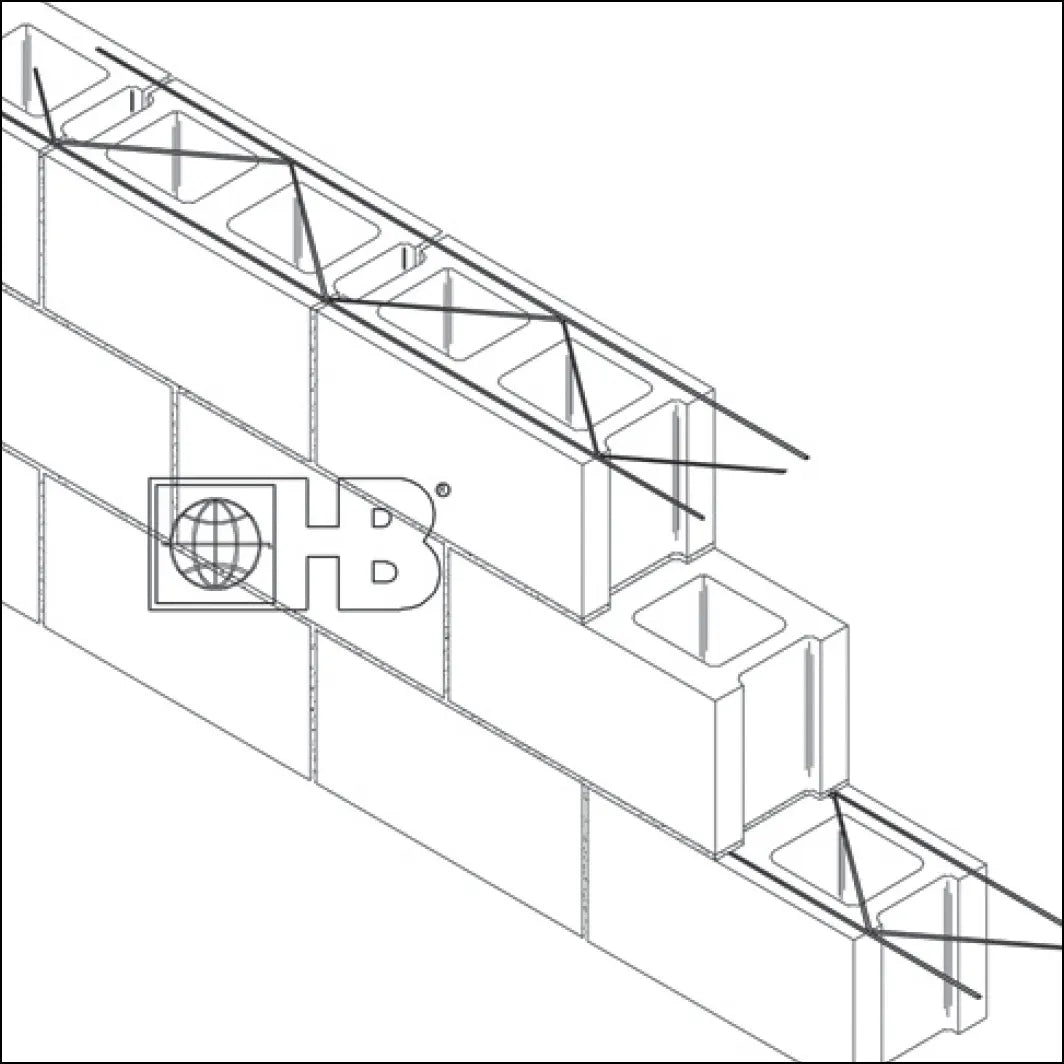

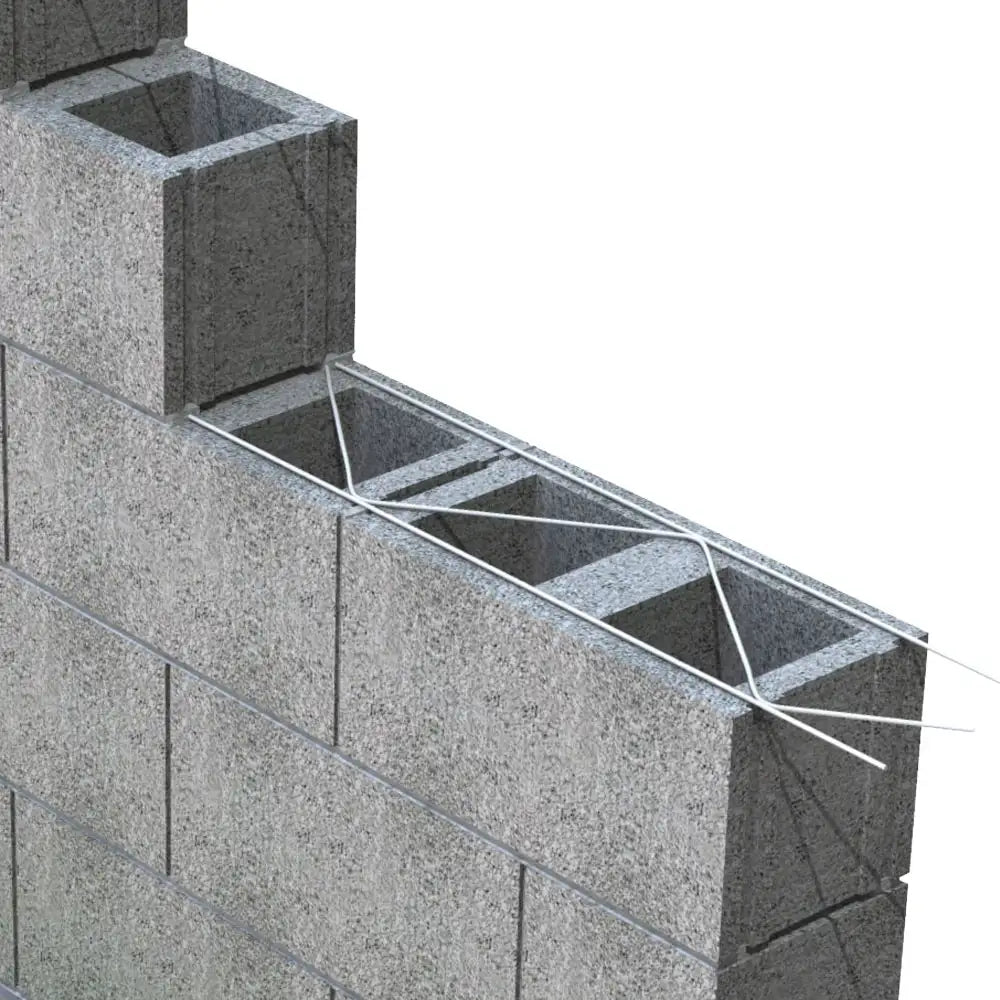

120 Truss-Mesh is a continuous length joint reinforcement system designed specifically for single wythe masonry walls. Embedded into the horizontal mortar joints, it enhances the structural performance of masonry walls by minimizing cracking, improving load distribution, and increasing resistance to water penetration. It also effectively bonds intersecting walls and corners, contributing to the long-term durability of the structure.

Structural Benefits:
  • Reinforces masonry walls to improve load distribution and overall strength.
  • Reduces cracking caused by thermal expansion and contraction.
  • Enhances lateral flexural strength for improved stability.
  • Improves water penetration resistance by helping control cracking.
  • Provides bonding at exterior and interior masonry wythes in composite walls.
  • Manufactured in compliance with ASCE/ACI 530 building code and ASTM A 951 standards.
Packaging:
  • Standard: 500′ per bundle (50 pieces – 10′ lengths)
  • Tri-Mesh & Twin-Mesh: 250′ per bundle (25 pieces – 10′ lengths)
  • Corners & Tees: 25 pieces per bundle
CMU Wall Type:
  • Single Wythe
Wire Sizes:
  • (S) Standard: 9 Gauge Side Rods × 9 Gauge Cross Rods
  • (EH) Extra Heavy: 3/16″ Ø Side Rods × 9 Gauge Cross Rods
  • (SHD) Super Heavy Duty: 3/16″ Ø Side Rods × 3/16″ Ø Cross Rods
Block Sizes:
  • 4″
  • 6″
  • 8″
  • 10″
  • 12″
Available Finishes:
  • Mill Galvanized
  • Hot-Dip Galvanized
  • Type 304 Stainless Steel
  • Type 316 Stainless Steel (Special Order)
Anchor Finish
Wire Size
Block Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
