Copy JHSEO Channel-Tee™ Seismic-Notch Anchor
/per piece
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
The Channel-Tee Seismic-Notch Anchor System is designed for projects requiring maximum vertical adjustability. The Continuous Channel is surface-mounted to the backup structure, and the Seismic-Notch Anchor can be inserted anywhere along the vertical length to align with mortar joints. Continuous joint reinforcing wire fits securely into the seismic notches of each anchor, ensuring streamlined installation and optimal performance.
Maximum Vertical Adjustability:- Anchor placement anywhere along the vertical channel to match mortar joint locations.
- Quick, efficient alignment reduces installation time and labor.
- 5/8″ thin-profile channel ideal for tight cavity conditions.
- Channel provided in 10′ lengths with holes drilled 12″ on-center.
- Seismic-Notch Anchor: 14 ga thickness; lengths 3″, 4″, or 5″ (custom sizes available).
- Mill Galvanized
- Hot-Dip Galvanized
- Type 304 Stainless Steel

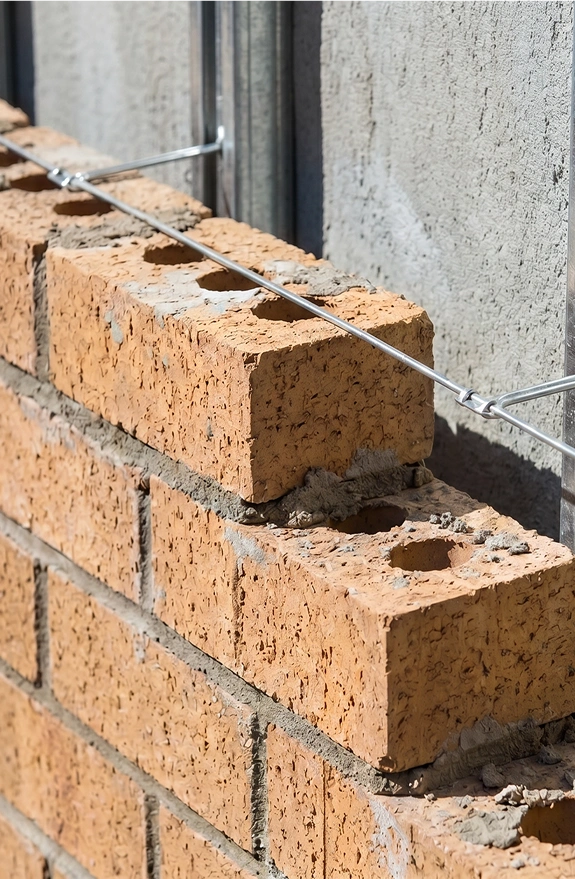

High-Performance Seismic Notch Anchor System for Masonry Veneer Walls
At WCR Fabricators, we supply the Channel-Tee™ Seismic Notch Anchor system, designed for anchored masonry veneer walls that require maximum vertical adjustability and reliable seismic performance. This high-performance anchoring solution provides secure attachment between the veneer and backup structure while improving installation efficiency and overall structural integrity.
Manufactured by Hohmann & Barnard and distributed by WCR Fabricators, the Seismic Notch Anchor system is engineered for durability, code compliance, and streamlined field installation.
What Is a Seismic Notch Anchor?

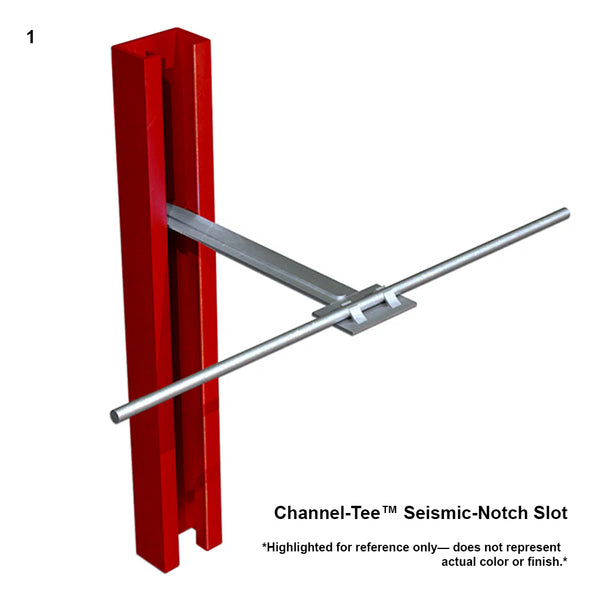

A Seismic Notch Anchor is part of a two-component anchoring system consisting of:
- A surface-mounted continuous channel attached to the backup structure
- A Seismic Notch Anchor that inserts into the channel
- Continuous joint reinforcing wire that locks securely into the anchor’s notches
This design allows contractors to position anchors precisely where mortar joints occur, improving alignment and reducing installation time.
Key Benefits of the Channel-Tee™ Seismic Notch Anchor
Maximum Vertical Adjustability
- Anchor placement anywhere along the vertical channel
- Easily aligns with horizontal mortar joints
- Ideal for projects requiring precision spacing
Improved Seismic Performance
- Designed for use in seismic zones
- Provides secure load transfer between the veneer and the backup
- Enhances lateral load resistance
Streamlined Installation
- Quick anchor insertion into the channel
- Reduced labor time
- Cleaner alignment with continuous joint reinforcement
Product Specifications
Channel
- 5/8″ thin-profile channel
- Ideal for tight cavity conditions
- Supplied in 10′ lengths
- Holes drilled 12″ on-center
Seismic Notch Anchor
- 14-gauge thickness
- Available lengths: 3″, 4″, 5″
- Custom sizes available upon request
- Sold in bundle quantities. Shipping calculated at checkout.
Available Finishes
Choose the finish best suited for your project environment:
- Mill Galvanized
- Hot-Dip Galvanized (HDG)
- Type 304 Stainless Steel
If you are building in coastal or high-moisture environments, stainless steel options provide superior corrosion resistance.

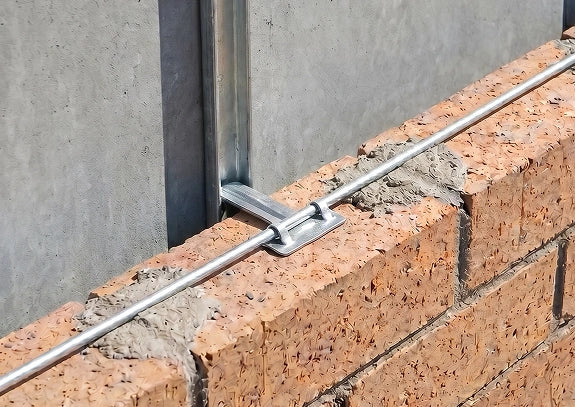

Applications
The Seismic Notch Anchor system is ideal for:
- Anchored masonry veneer walls
- Commercial construction projects
- Multi-family residential buildings
- Seismic zone construction
- Institutional and industrial facilities
Contractors trust this system for projects requiring both structural reliability and installation flexibility.
Why Order Seismic Notch Anchors from WCR Fabricators?
WCR Fabricators is a manufacturer of masonry rebar positioners and a master distributor for Hohmann & Barnard, Wire Bond, Halfen, and Heckmann Building Materials. When you purchase your Seismic Notch Anchor system from WCR Fabricators, you benefit from:
Trusted manufacturer-backed products
Competitive contractor pricing
Reliable inventory and fulfillment
Expert masonry product knowledge
Mill certifications available upon request
If mill certifications or domestic materials are required, you must specify this in your order notes at checkout. Orders without special requests will be fulfilled with standard materials and no certifications.
Commonly Paired Products

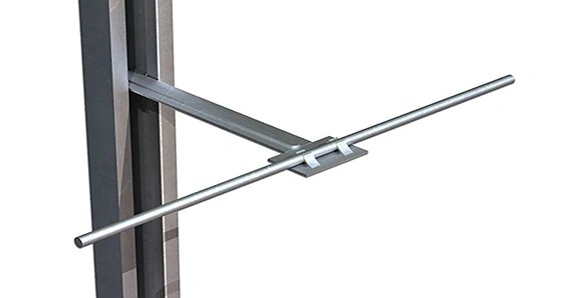

Order Channel-Tee™ Seismic Notch Anchor Today
Ensure your masonry veneer system meets structural and seismic demands with the Channel-Tee™ Seismic Notch Anchor from WCR Fabricators, your one-stop masonry supply partner online.
Frequently Asked Questions (FAQs)
It provides precise attachment points for veneer walls to the backup structure while improving seismic performance and lateral load distribution.
Anchors can be inserted anywhere along the continuous channel to align with mortar joints, reducing field adjustments and labor time.
Available lengths are 3″, 4″, and 5″, with custom sizes available upon request.
Type 304 Stainless Steel and Type 316 Stainless Steel (special order) provide superior corrosion resistance in coastal or high-moisture locations.
Yes, pairing the Seismic Notch Anchor with Continuous Flex Wire creates a continuous reinforcement path, enhancing wall stability and seismic performance.
Generally, yes, but you must request them in your order notes at checkout. Orders without special requests will be fulfilled with standard materials only.
