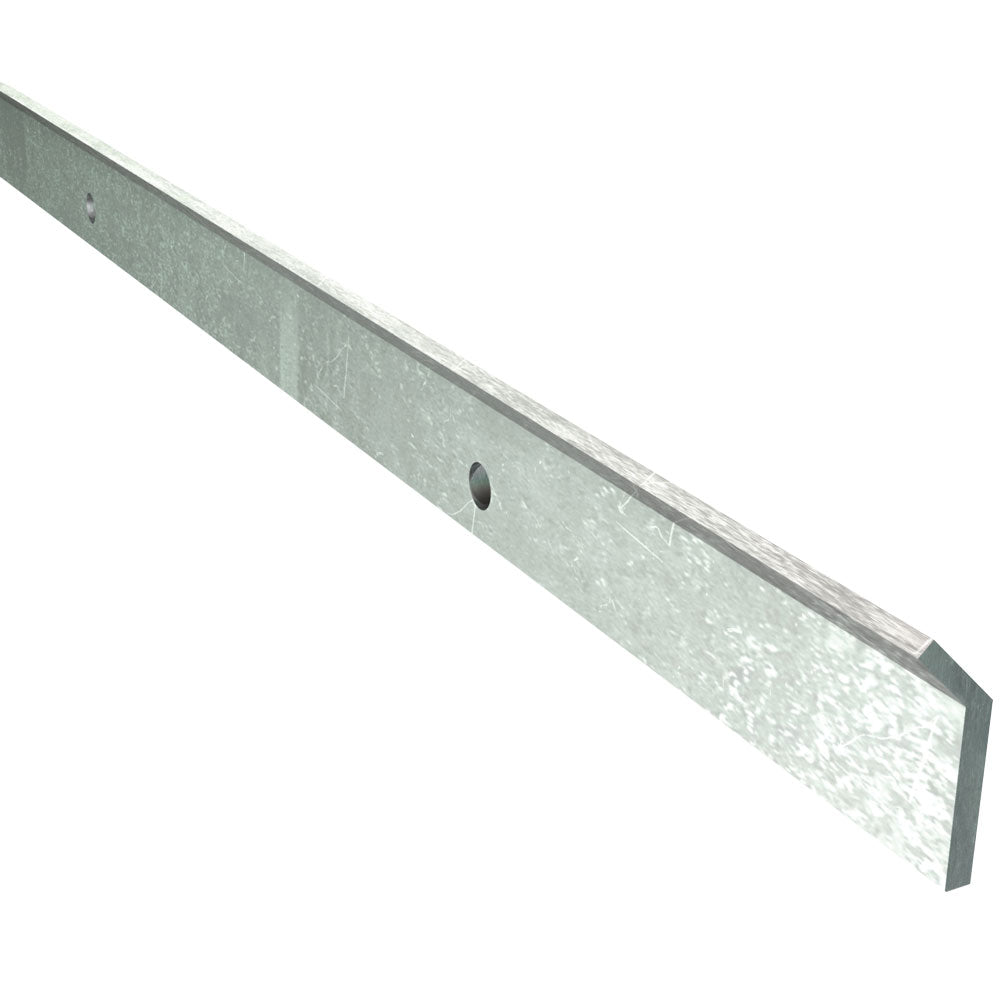

T2 - Termination Bar

$1.04
Shipping calculated at checkout.

/per linear foot

Price shown is per foot; sold only in boxes of 200'. Orders must be in multiples of 200'.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

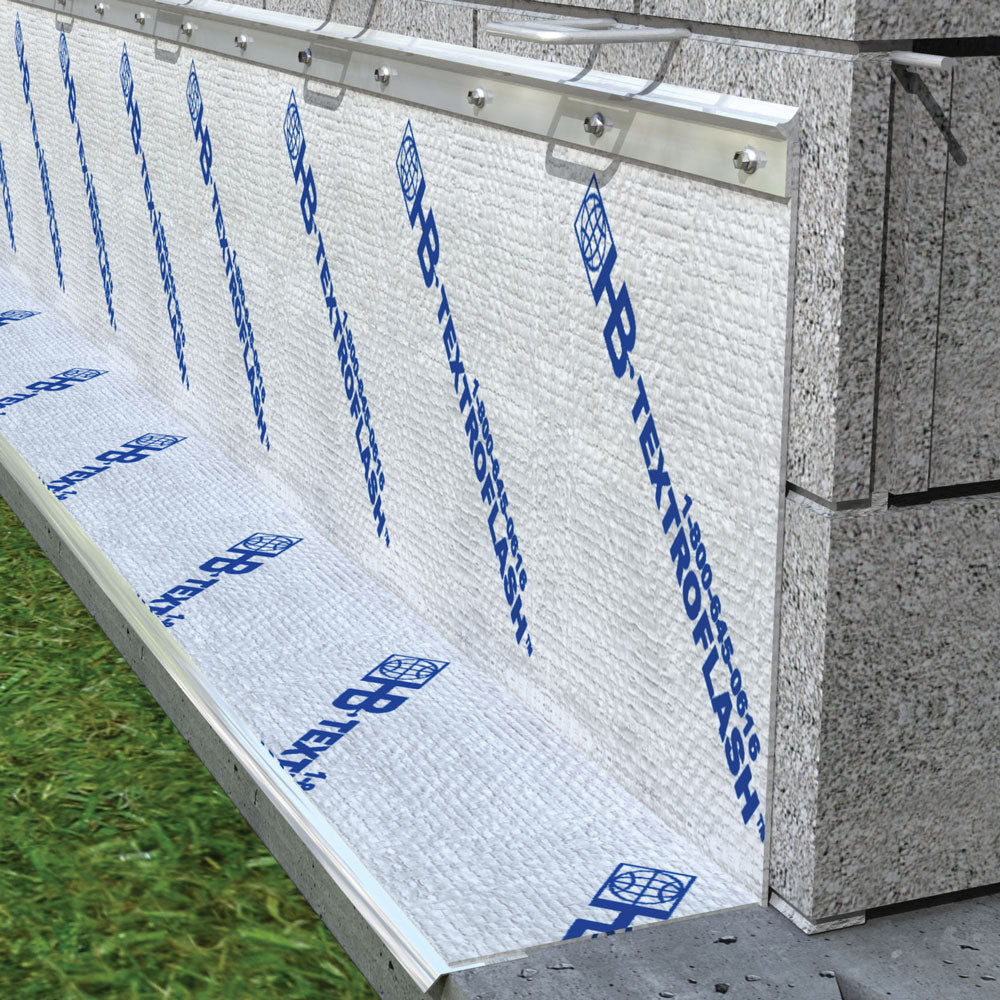

The T2 – Termination Bar features a top flange for easy caulking and secure attachment of flashing to the backup structure. Compatible with all H&B flashing products, it helps prevent moisture infiltration at the top of flashing.

Key Features:
  • Top flange for simple, secure caulking.
  • Securely attaches flashing to backup materials.
  • Optional Foam-Tite Seal™ for enhanced moisture resistance.
  • Compatible with ENVIRO-BARRIER™ when stainless steel or aluminum.
Dimensions:
  • Stainless Steel: 26 ga × 1-1/2″ × 8′ (Top Flange: 3/8″)
  • Aluminum: 14 ga × 1″ × 8′ (Top Flange: 1/4″)
Materials & Finishes:
  • Type 304 Stainless Steel
  • Aluminum
Options & Details:
  • FTS – Foam-Tite Seal™ (Specify T2-FTS when ordering)
  • U.S. Patent No. 6,945,000 / Patents Pending
  • Hole Ø: 1/4″, spaced 8″ on center
  • Lengths: 8′
  • Backup Types: Brick, Concrete, CMU, Metal Stud, Wood Stud
Variant

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
