By Hohmann & Barnard

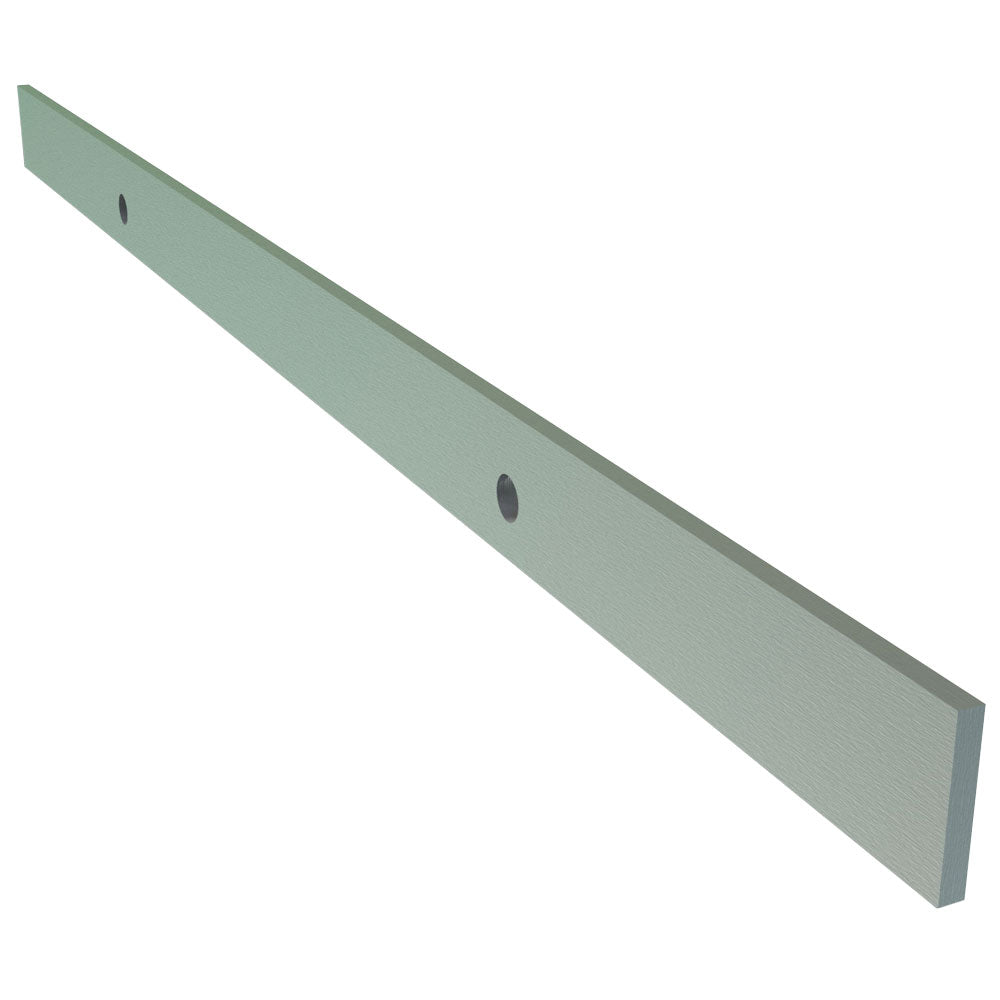

T1 - Termination Bar

$1.55
Shipping calculated at checkout.

/per linear foot

Price shown is per foot; sold only in boxes of 200'. Orders must be in multiples of 200'.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

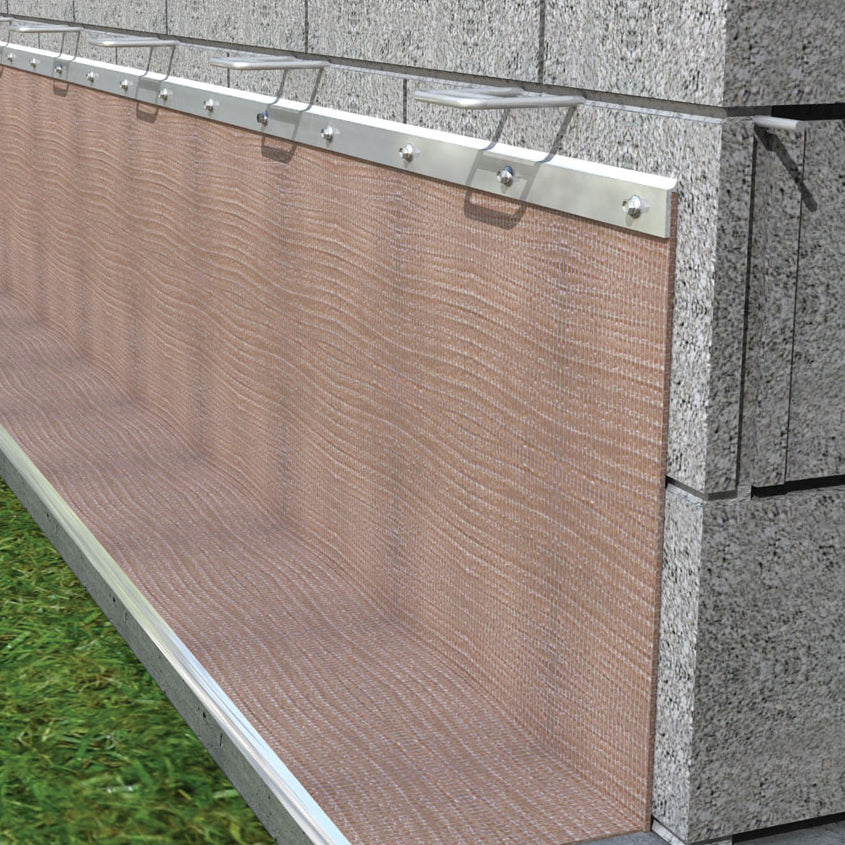

The T1 – Termination Bar secures flashing to the backup structure at the top of the membrane, helping to inhibit moisture infiltration. It’s compatible with all H&B membrane and composite flashings (including copper and stainless) and is suitable for a wide range of backup types.

Key Features:
  • Securely fastens flashing to backup materials for a reliable termination.
  • Helps reduce moisture infiltration at the top of flashing.
  • Optional Foam-Tite Seal™ to fill voids and enhance water resistance.
  • Compatible with ENVIRO-BARRIER™ when specified in Stainless Steel or Aluminum.
Dimensions & Details:
  • Thickness: 1/8"
  • Width: 1"
  • Length: 8'
  • Hole Ø: 1/4", spaced 8" on center
Materials / Finishes:
  • Type 304 Stainless Steel
  • Type 316 Stainless Steel (Special Order)
  • Aluminum
  • PVC
Options & Notes:
  • Foam-Tite Seal™ (FTS) available; specify with order.
  • U.S. Patent No. 6,945,000; Patents Pending
  • Typical Backup Types: Brick, Concrete, CMU, Metal Stud, Wood Stud
Variant

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
