By Hohmann & Barnard

Channel-Tee™ Seismic-Notch Anchor

$0.56
Shipping calculated at checkout.

/per linear foot

Sold by the linear foot in 100ft increments.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

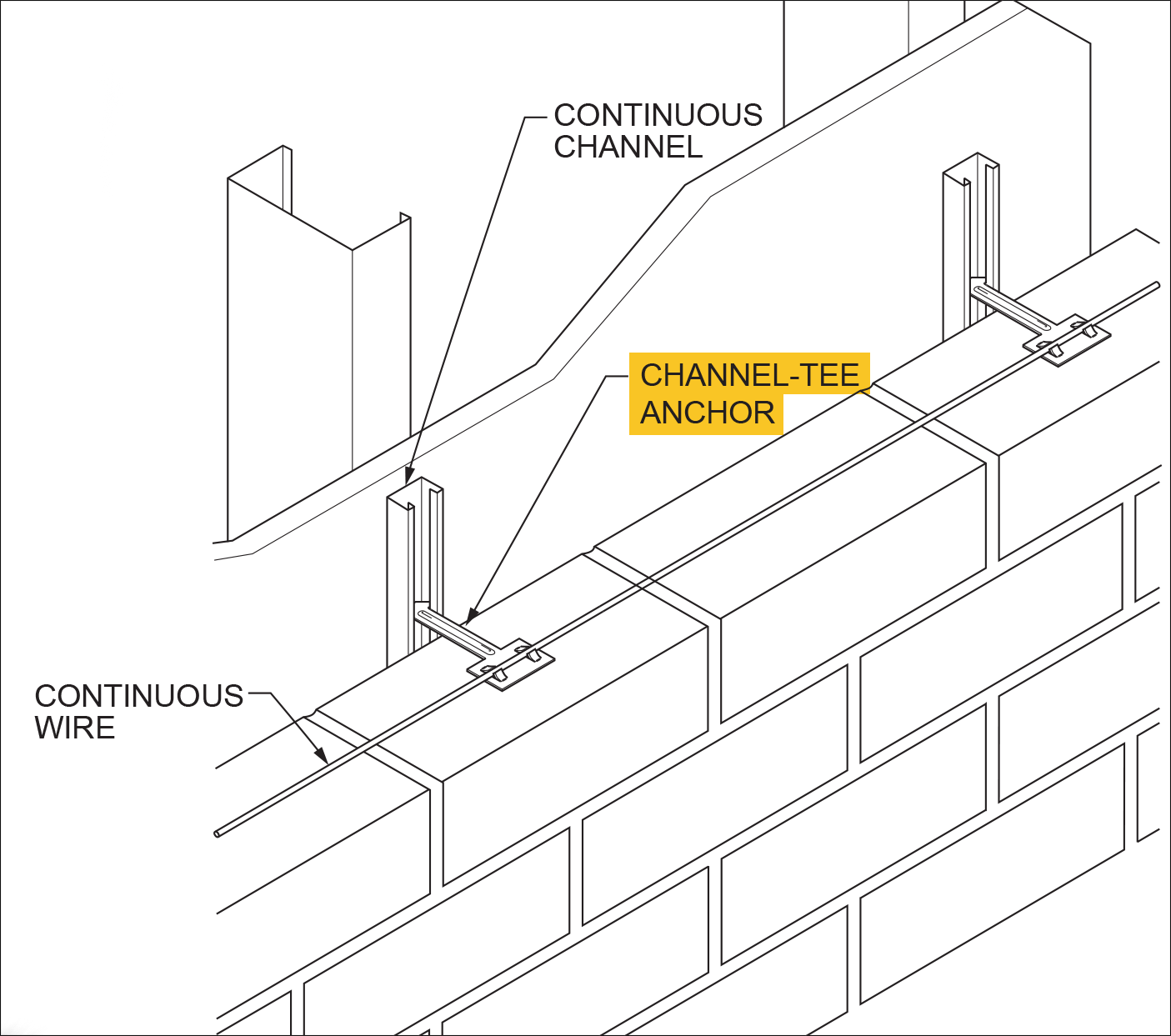

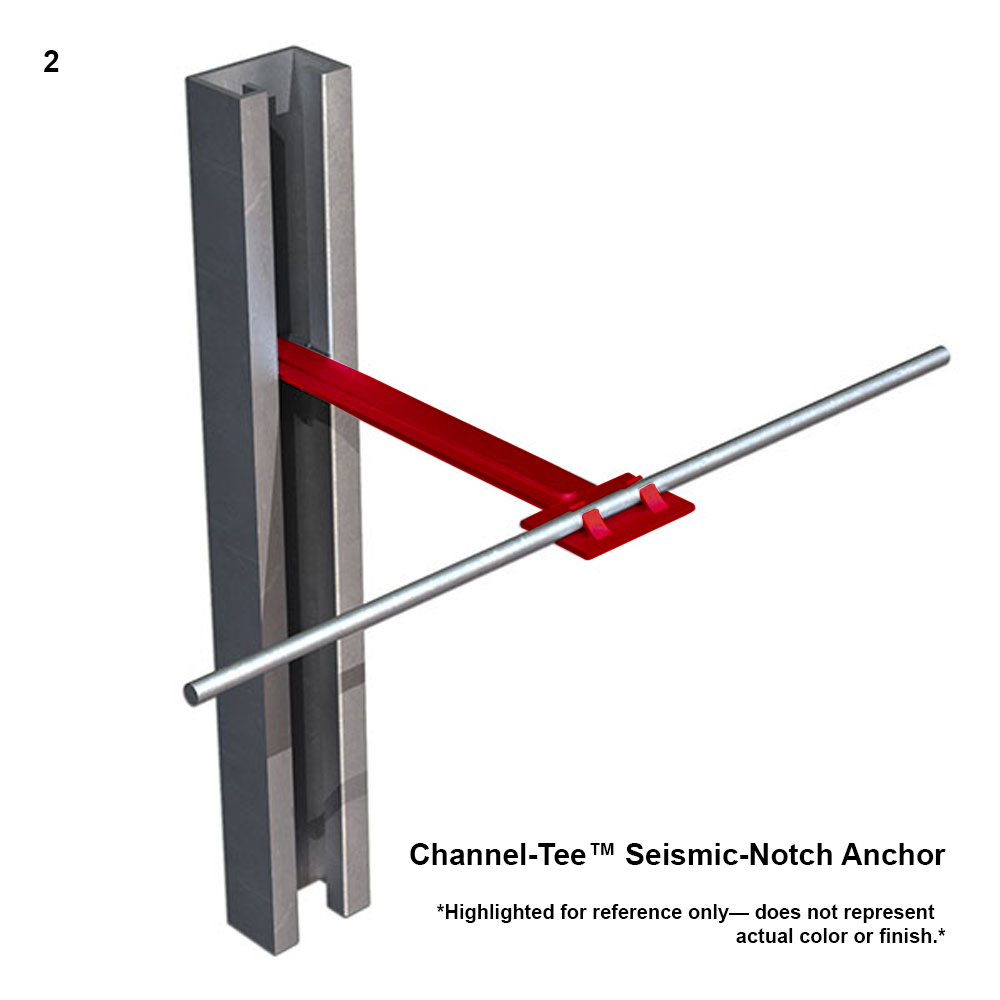

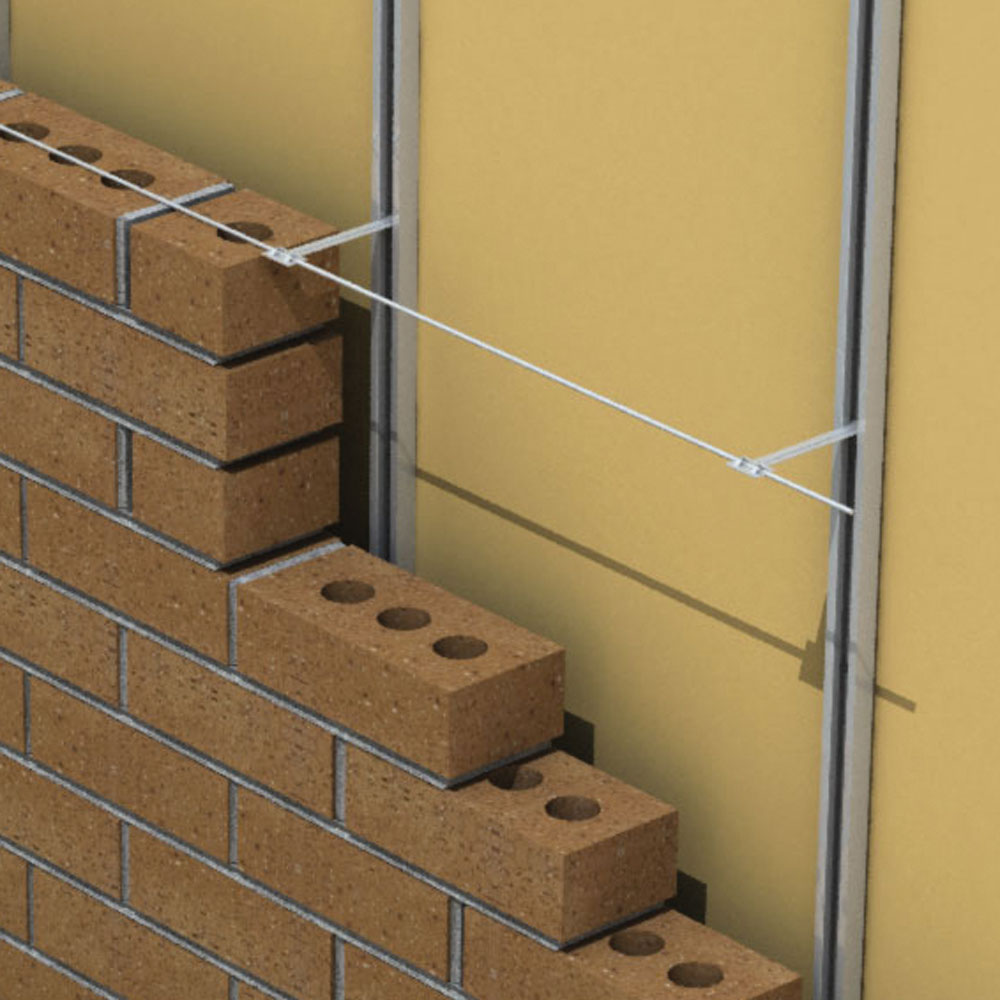

The Channel-Tee Seismic-Notch Anchor System is designed for projects requiring maximum vertical adjustability. The Continuous Channel is surface-mounted to the backup structure, and the Seismic-Notch Anchor can be inserted anywhere along the vertical length to align with mortar joints. Continuous joint reinforcing wire fits securely into the seismic notches of each anchor, ensuring streamlined installation and optimal performance.

Maximum Vertical Adjustability:
  • Anchor placement anywhere along the vertical channel to match mortar joint locations.
Streamlined Installation:
  • Quick, efficient alignment reduces installation time and labor.
Dimensions & Gauges:
  • 5/8″ thin-profile channel ideal for tight cavity conditions.
  • Channel provided in 10′ lengths with holes drilled 12″ on-center.
  • Seismic-Notch Anchor: 14 ga thickness; lengths 3″, 4″, or 5″ (custom sizes available).
Available Finishes:
  • Mill Galvanized
  • Hot-Dip Galvanized
  • Type 304 Stainless Steel
Anchor Finish
Anchor Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
