Channel-Tee™ Seismic-Notch Slot

$1.98
Shipping calculated at checkout.

/per linear foot

Sold by the linear foot in 100-ft increments.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

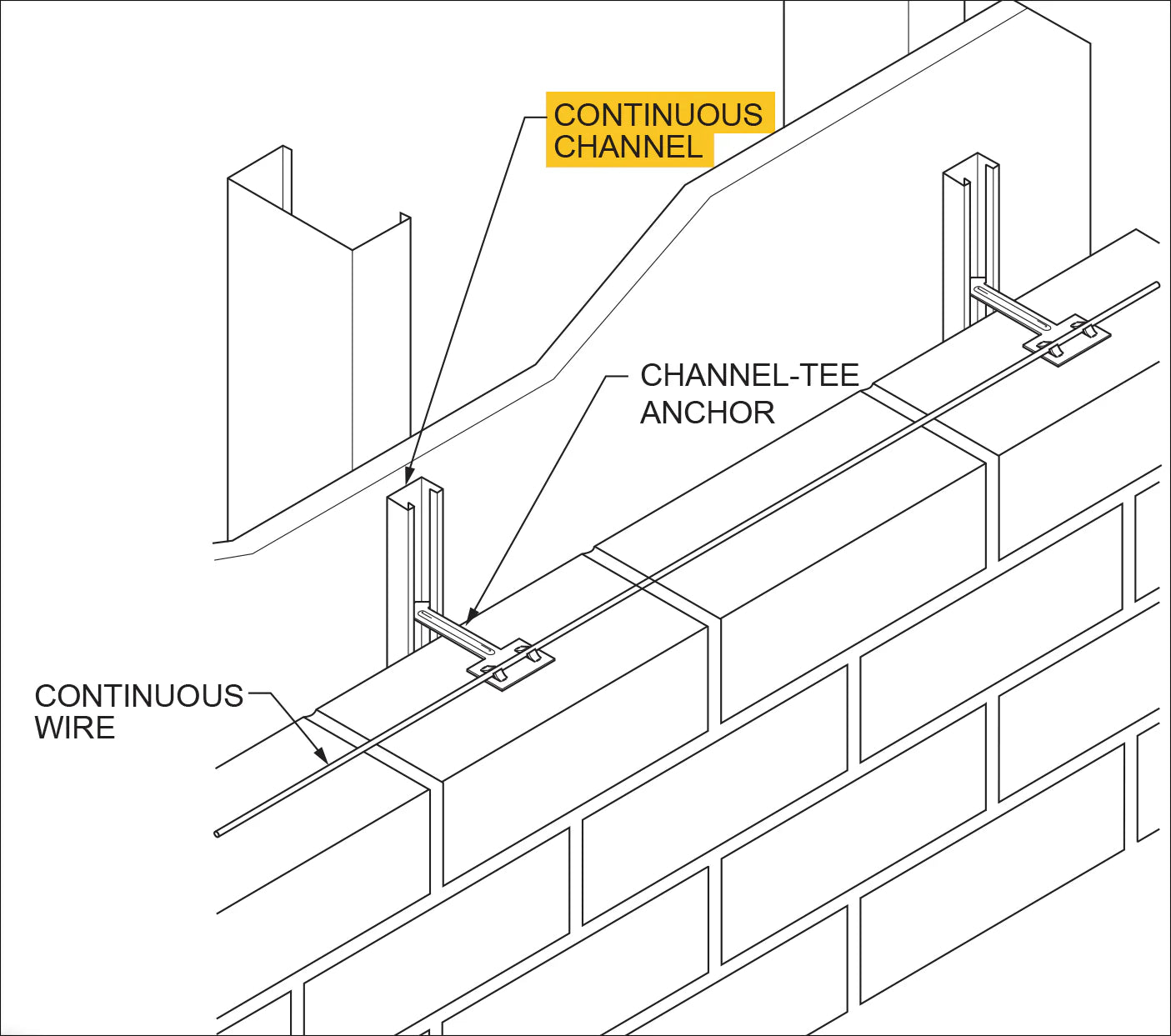

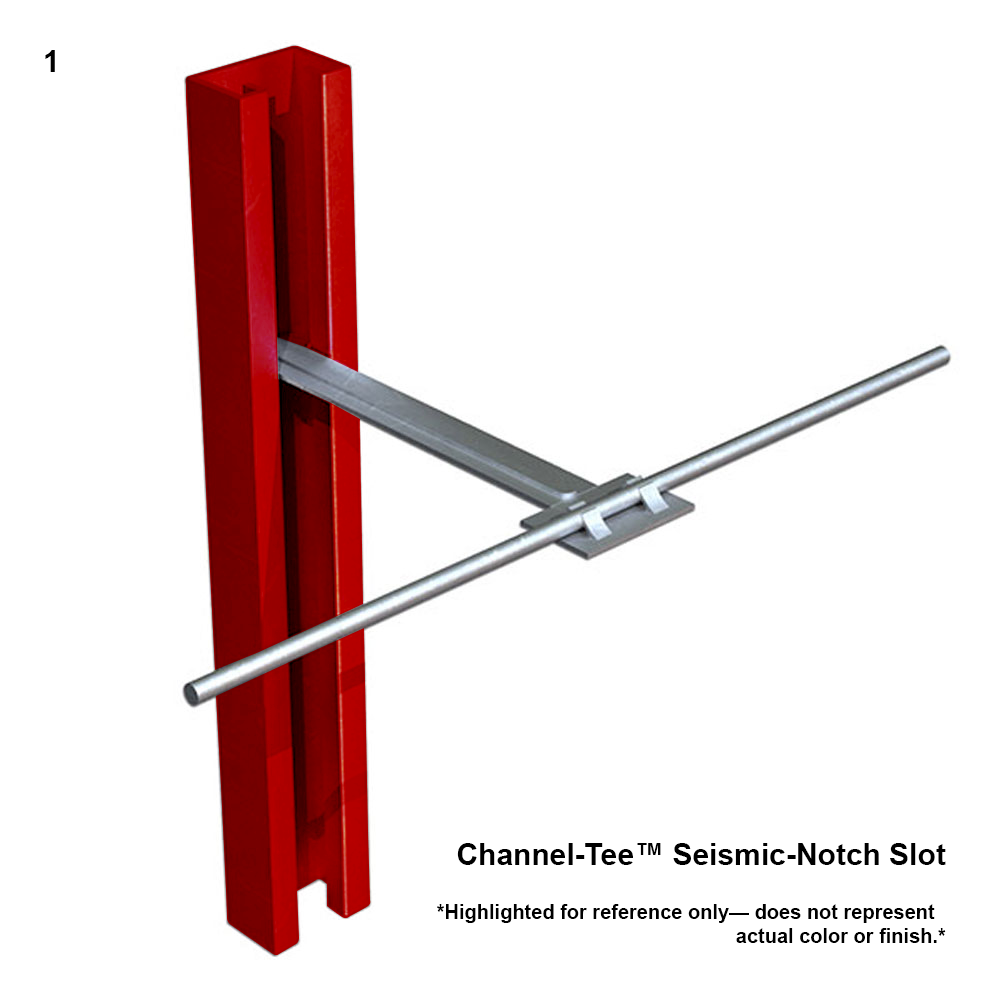

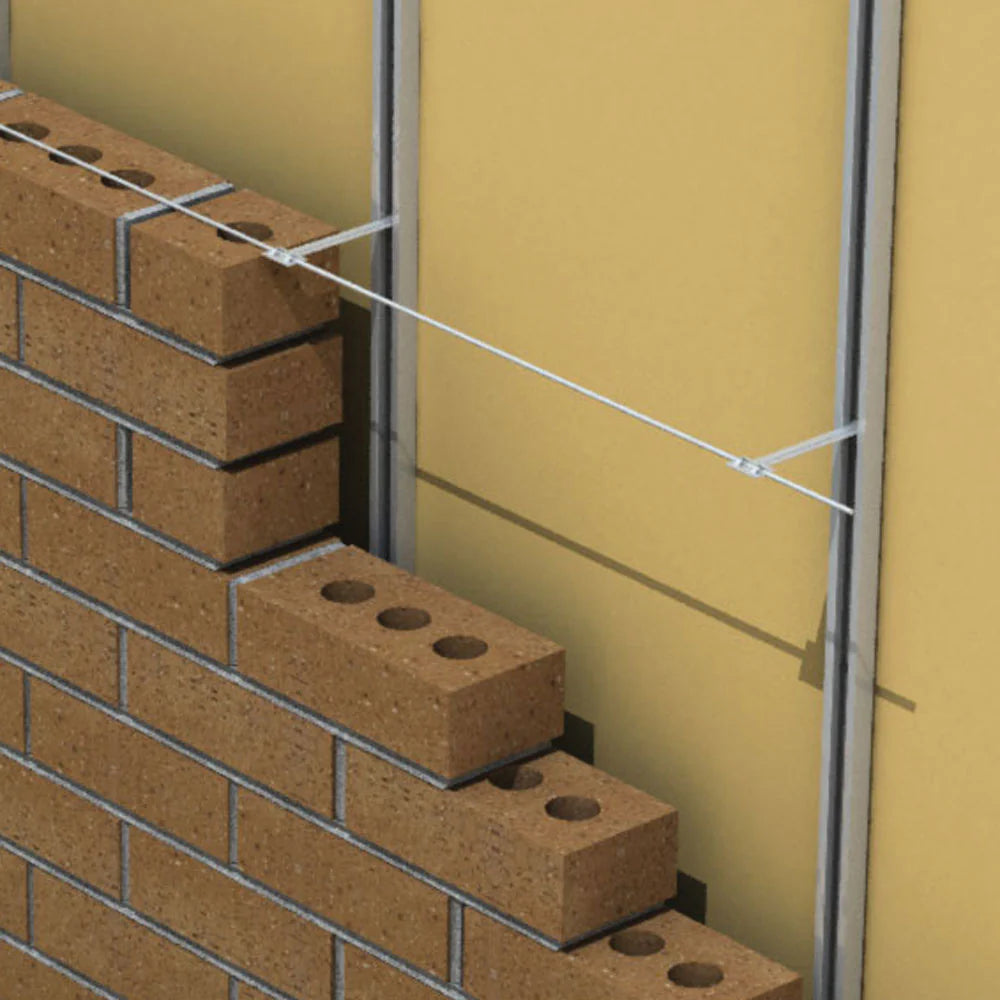

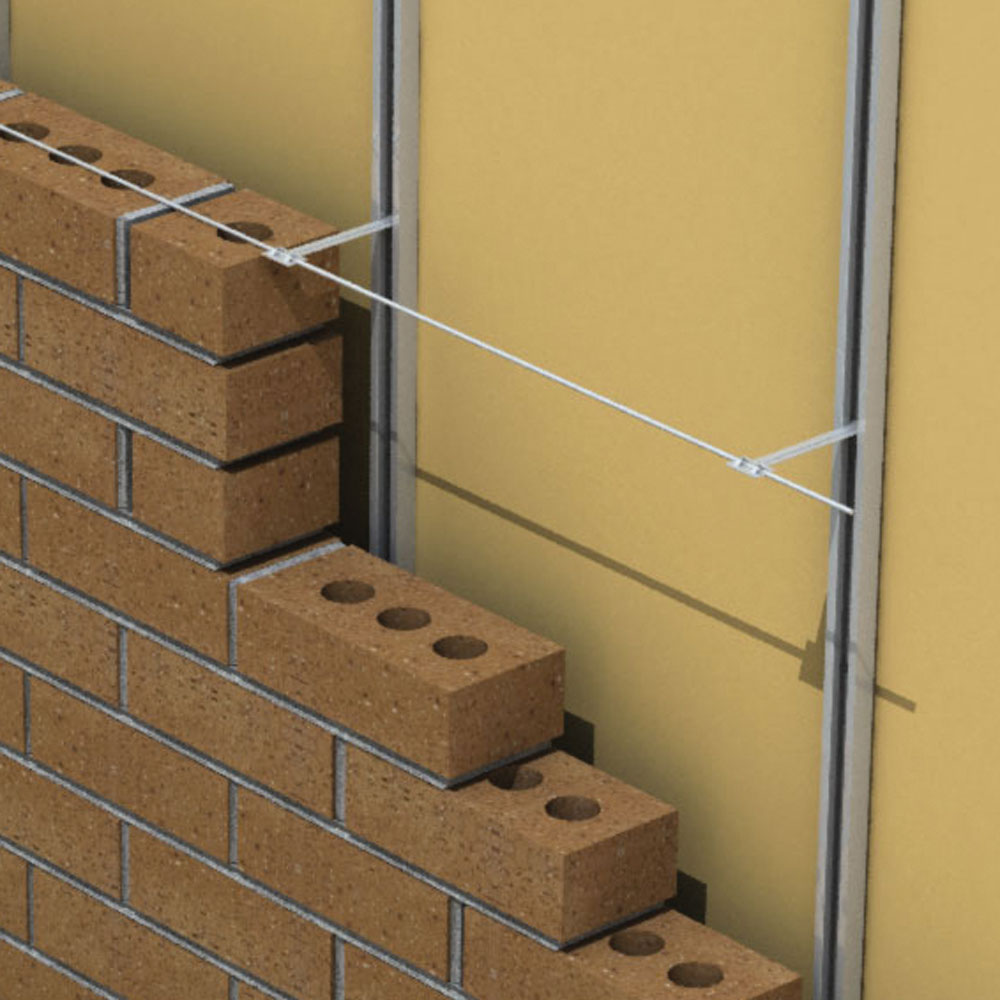

The Channel-Tee Seismic-Notch Anchor System is designed for maximum vertical adjustability and streamlined installation. The continuous channel is surface-mounted to the backup wall, allowing the seismic-notched anchor to be inserted at any vertical position to align with mortar joints. Reinforcing wire fits into the seismic notches of each anchor, improving overall system efficiency and strength.

Maximum Vertical Adjustability:
  • Anchors can be positioned anywhere along the channel to match mortar joints.
Streamlined Installation:
  • Quick and simple integration into the backup wall structure.
Dimensions & Specifications:
  • 5/8″ channel profile designed for tight cavities.
  • Channel provided in 10′ lengths with 12″ on-center predrilled holes.
  • Seismic-notched anchors available in various configurations.
Available Finishes:
  • Mill Galvanized
  • Hot-Dip Galvanized
  • Type 304 Stainless Steel
Channel Finish

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
