By Hohmann & Barnard

345-BT Flexible Tie

$1.24
Shipping calculated at checkout.

/per piece

Price shown is per piece; sold only in bundles of 250 pieces. Orders must be in multiples of 250.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

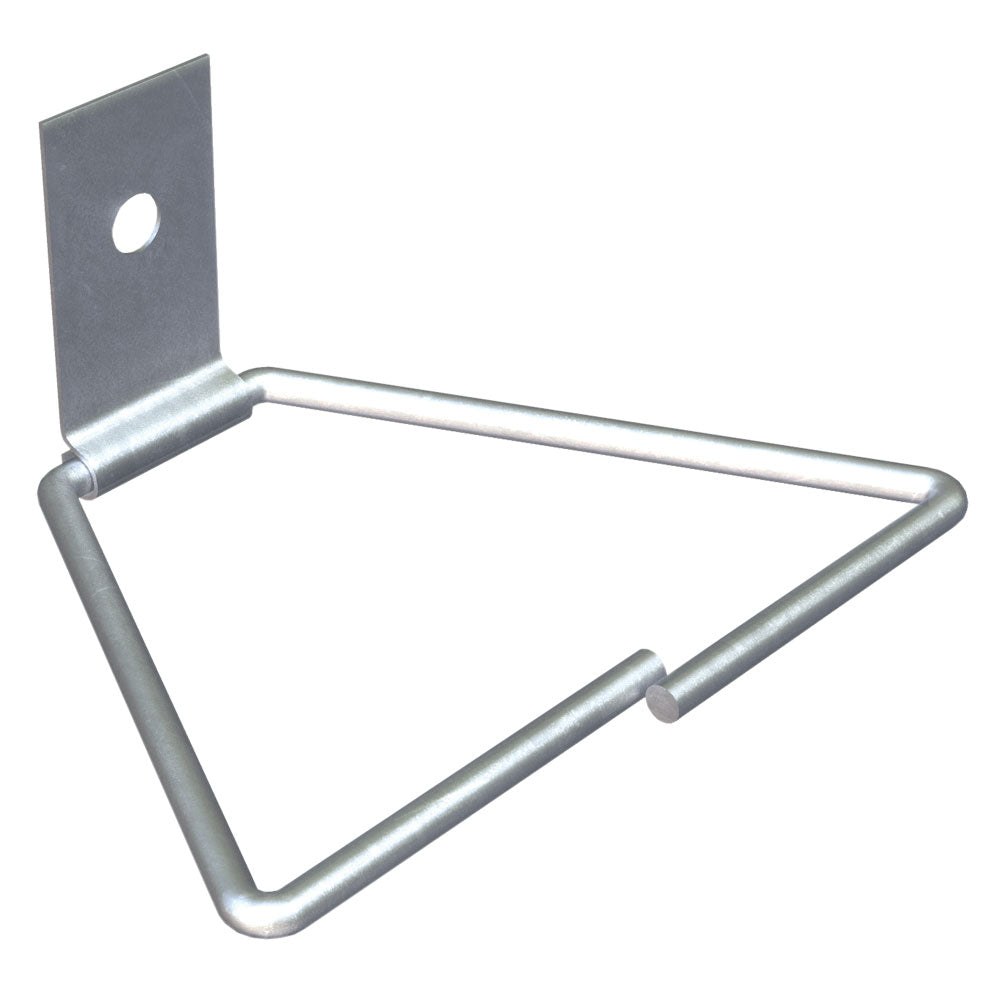

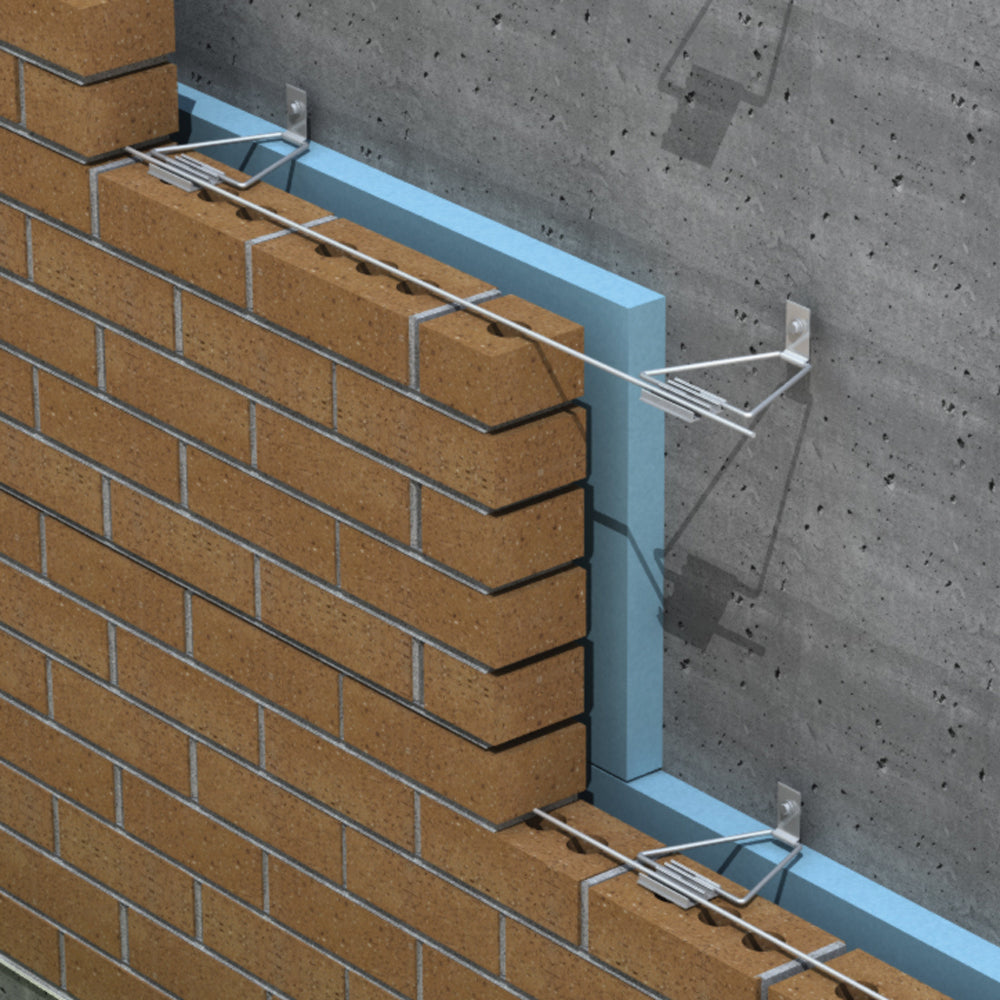

The 345-BT Flexible Tie provides a non-rigid connection for anchoring masonry veneer to concrete or CMU backup. It consists of a heavy-duty wrap-around metal strap combined with a Vee Byna-Tie® segment, allowing controlled movement while maintaining secure attachment.

Gauges & Dimensions:
  • Strap Width & Gauge: ¾″ wide × 12 ga. thick with a 5/16″ Ø hole
  • Vee Byna-Tie®: 3/16″ Ø wire, available in lengths 3″, 3½″, 4″, 4½″, 5″, 6″, or 7″ (custom lengths upon request)
  • Vertical Adjustability: 0″ (fixed)
Installation Notes:
  • Wrap metal strap around backup and secure per engineer’s specification.
  • Ensure proper embedment of Vee Tie into mortar joint for optimal performance.
Backup Types:
  • Brick
  • Concrete
  • CMU
  • Wood Stud
  • Metal Stud
Wire Diameter Options:
  • 3/16″ Ø (standard)
  • 1/4″ Ø (heavyweight)
Available Finishes:
  • Hot-Dip Galvanized
  • Type 304 Stainless Steel
  • Type 316 Stainless Steel (Special Order)
Minimum Air Space Requirement:
  • 1/2″
Hardware material
Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
