DW-10HS® Veneer Anchor

$0.54
Shipping calculated at checkout.

/per piece

Sold by the piece in 250-piece bundles.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

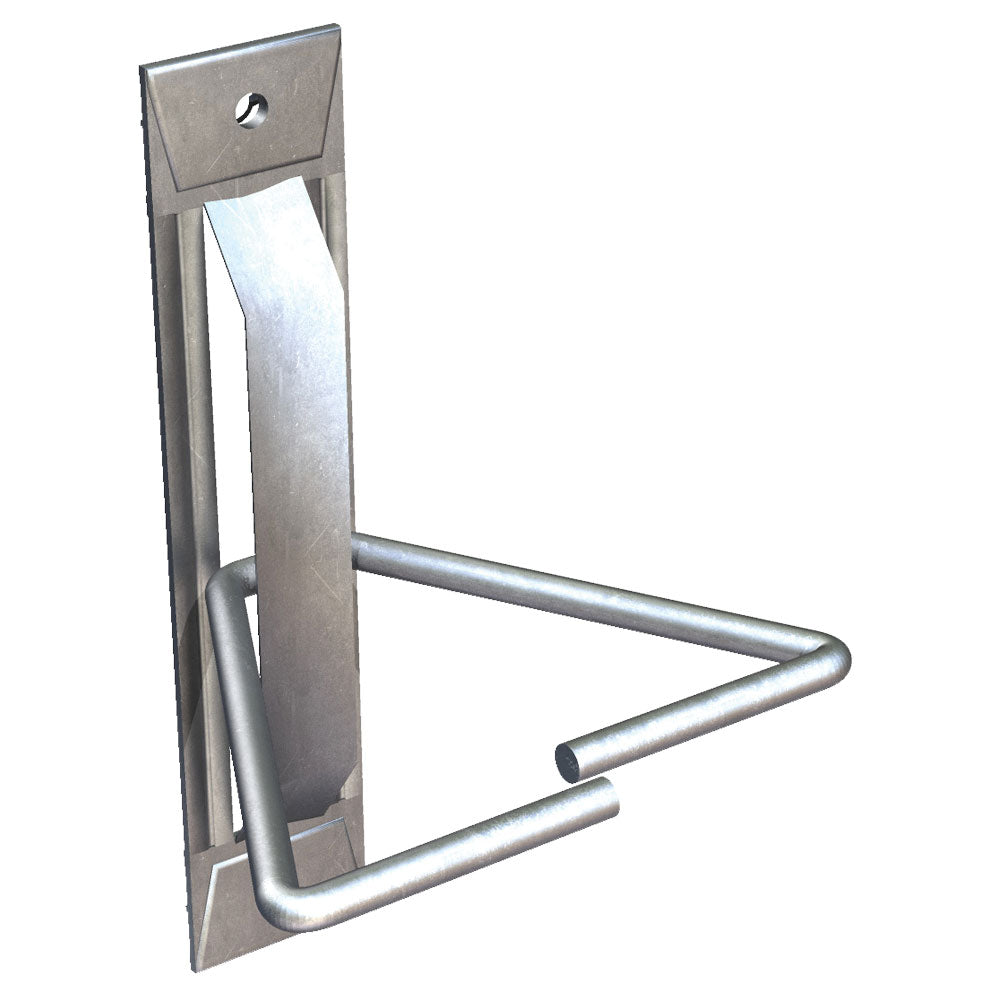

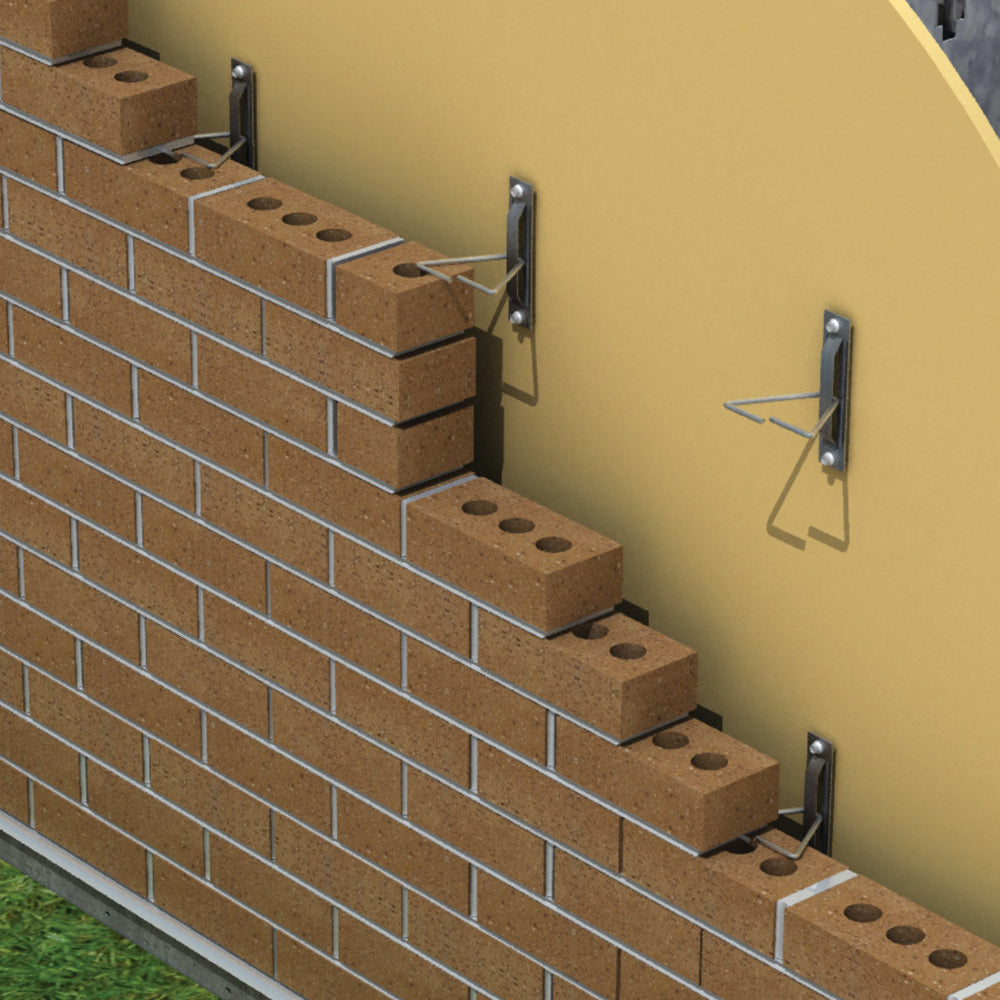

DW-10HS® is a high-strength veneer tie for anchoring brick veneer to metal stud, masonry, concrete, or wood backup. Ideal where no insulation is used or wallboard deterioration is minimal. For insulated walls or potential wallboard wear, see our X-SEAL® Anchor.

Available Finishes:
  • Mill Galvanized
  • Hot-Dip Galvanized
  • Type 304 Stainless Steel
  • Type 316 Stainless Steel (Special Order)
Dimensions & Gauges:
  • Overall Length: 5 ½"
  • Vertical Adjustability: 3"
  • Hole Diameter: 9/32" Ø
  • Thickness/Gauge: 12 ga. or 14 ga.
Backup Types:
  • Brick
  • CMU
  • Concrete
  • Wood Stud
  • Metal Stud
Notes:
  • For seismic applications see DW-10HS™ / Byna-Lok® or Seismiclip® Interlock System.
Minimum Air Space Requirement:
  • ½"
Hardware material
Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
