• 315 Flexible Dovetail Brick Tie
  • 315 Flexible Dovetail Brick Tie
1 2

By Hohmann & Barnard

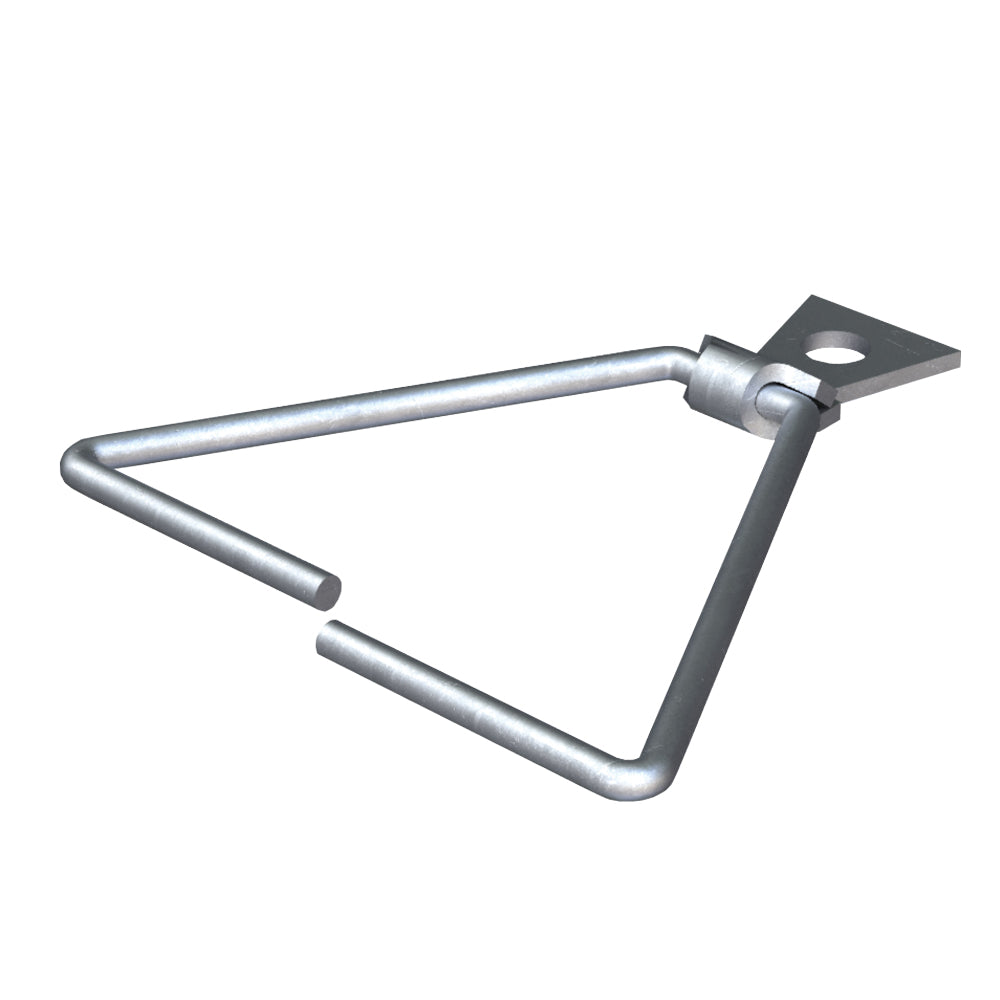

315 Flexible Dovetail Brick Tie

$1.52
Shipping calculated at checkout.

/per piece

Price shown is per piece; sold only in bundles of 250 pieces. Orders must be in multiples of 250.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

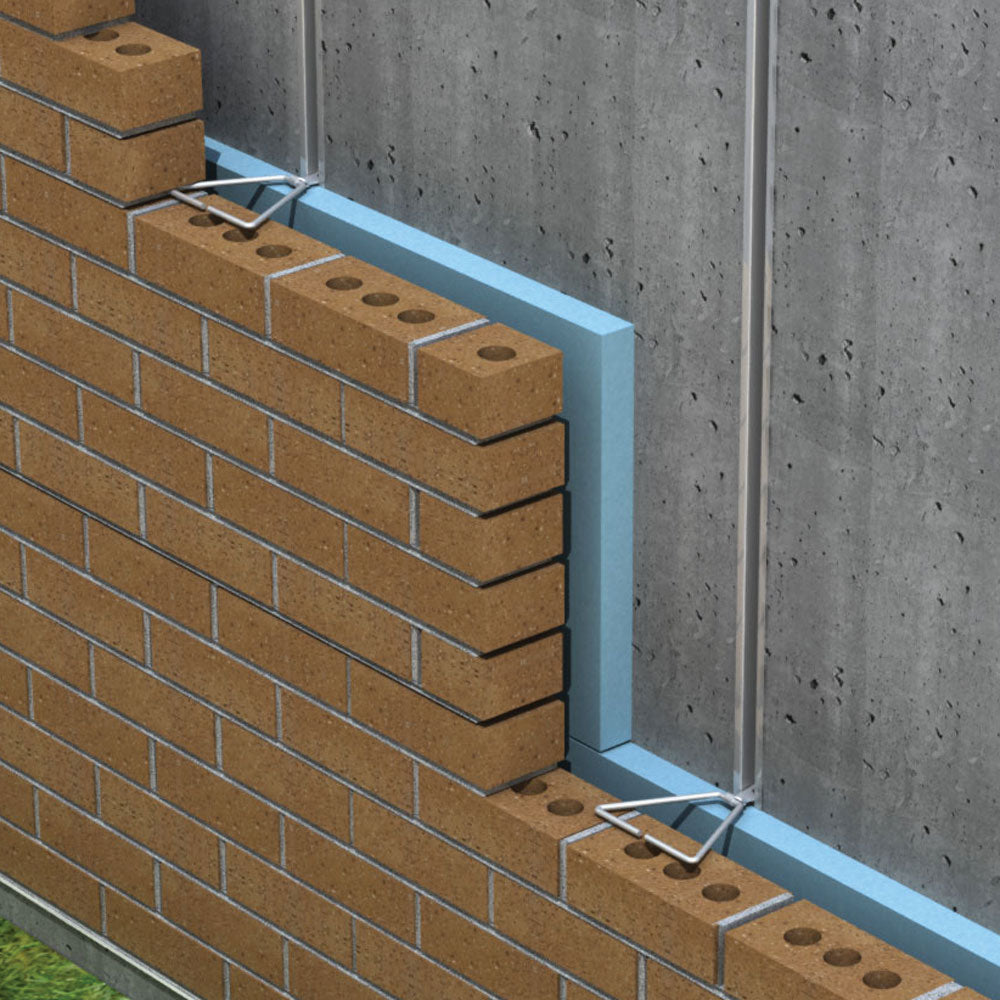

H&B's 315 Flexible Dovetail Brick Tie was designed for use with the 305 Dovetail Slot or anchored directly to backup (structural adequacy must be verified by the project engineer before surface mounting). Permits horizontal and vertical movement of the veneer while restraining tension and compression.

Available Finishes:
  • Hot-Dip Galvanized
  • Stainless Steel
Dimensions & Gauges:
  • Dovetail Head: 12 gauge
  • Head Hole Diameter: 9/32" Ø
  • Vee Wall Tie Diameter: 3/16" Ø (Standard); 1/4" Ø (Heavyweight)
  • Vee Wall Tie Lengths: 3", 3½", 4", 4½", 5" (other lengths available)
Additional Specs:
  • Thickness/Gauge: 12 gauge
  • Backup Types: Brick, Concrete, CMU, Metal Stud, Wood Stud
  • Wire Diameter: 3/16" Ø
Hardware material
Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
