By Hohmann & Barnard

Sharktooth Inserts

$12.74
Shipping calculated at checkout.

/per piece

Price shown is per piece; sold only in bundles of 250 pieces. Orders must be in multiples of 250.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

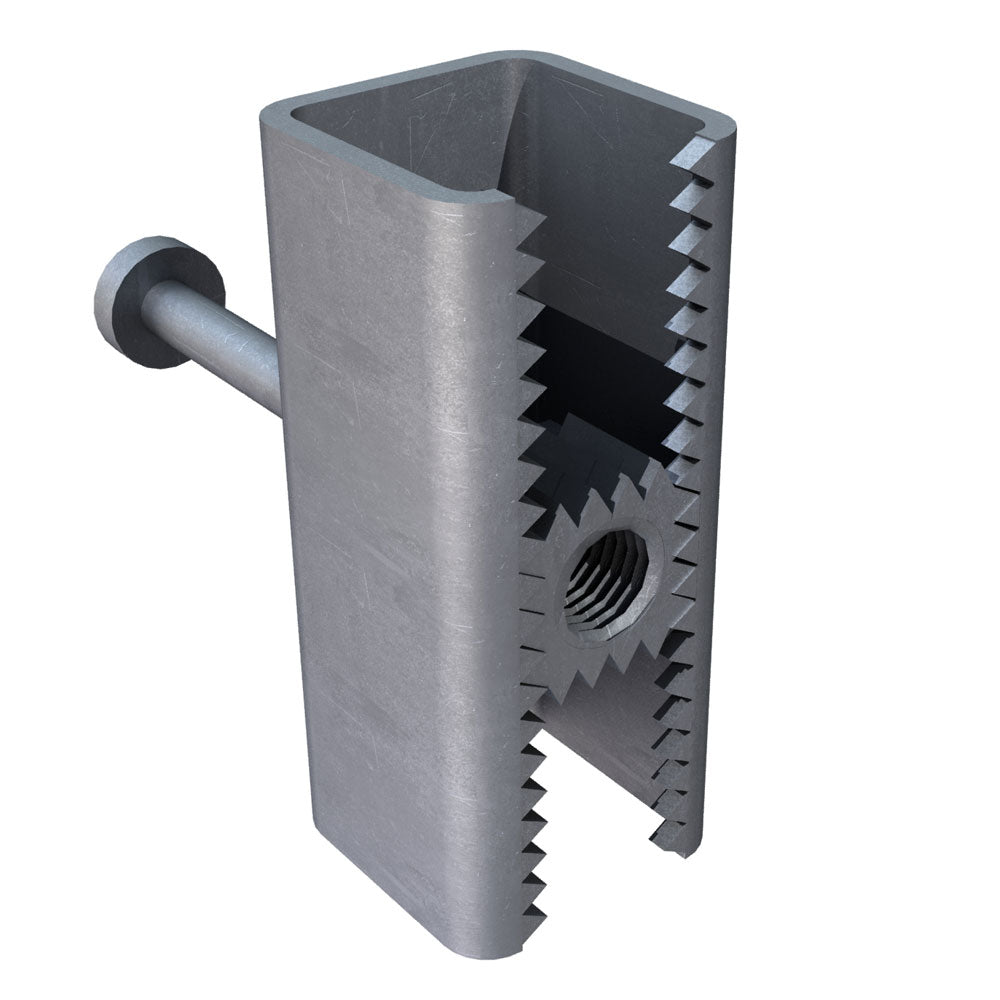

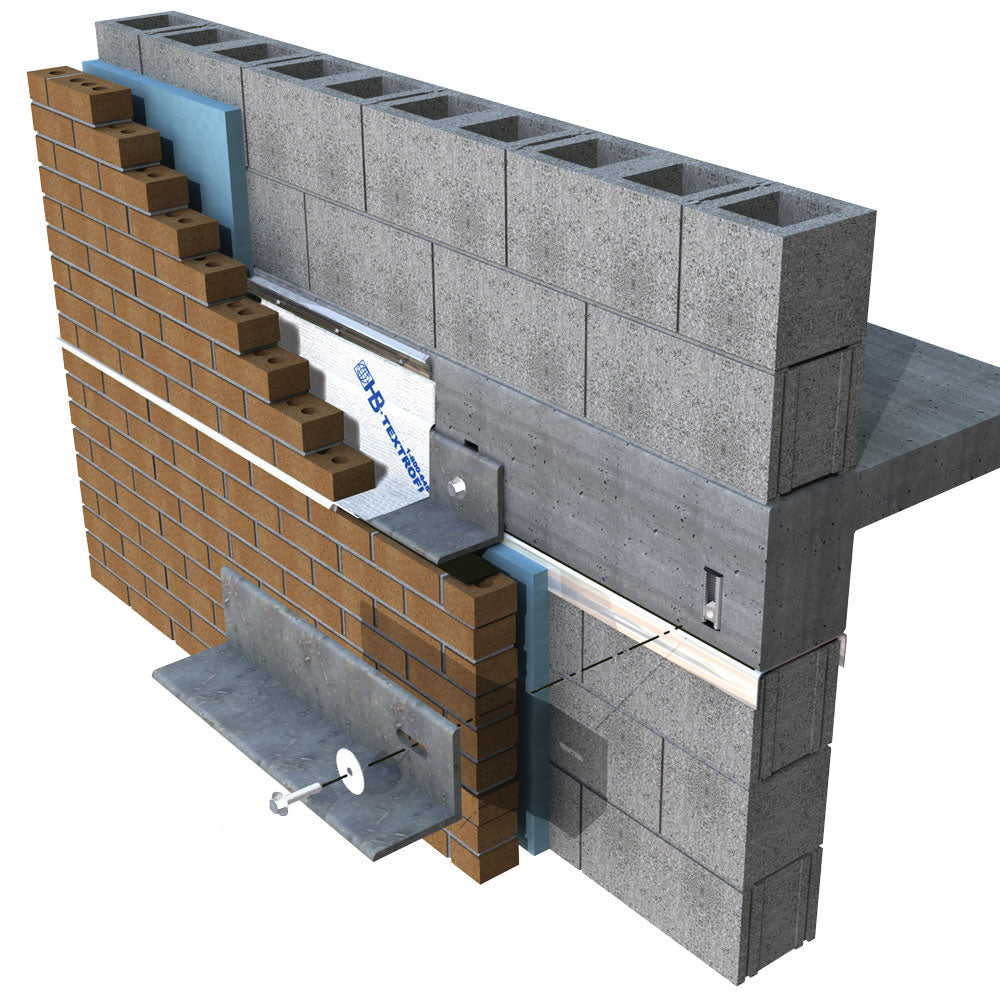

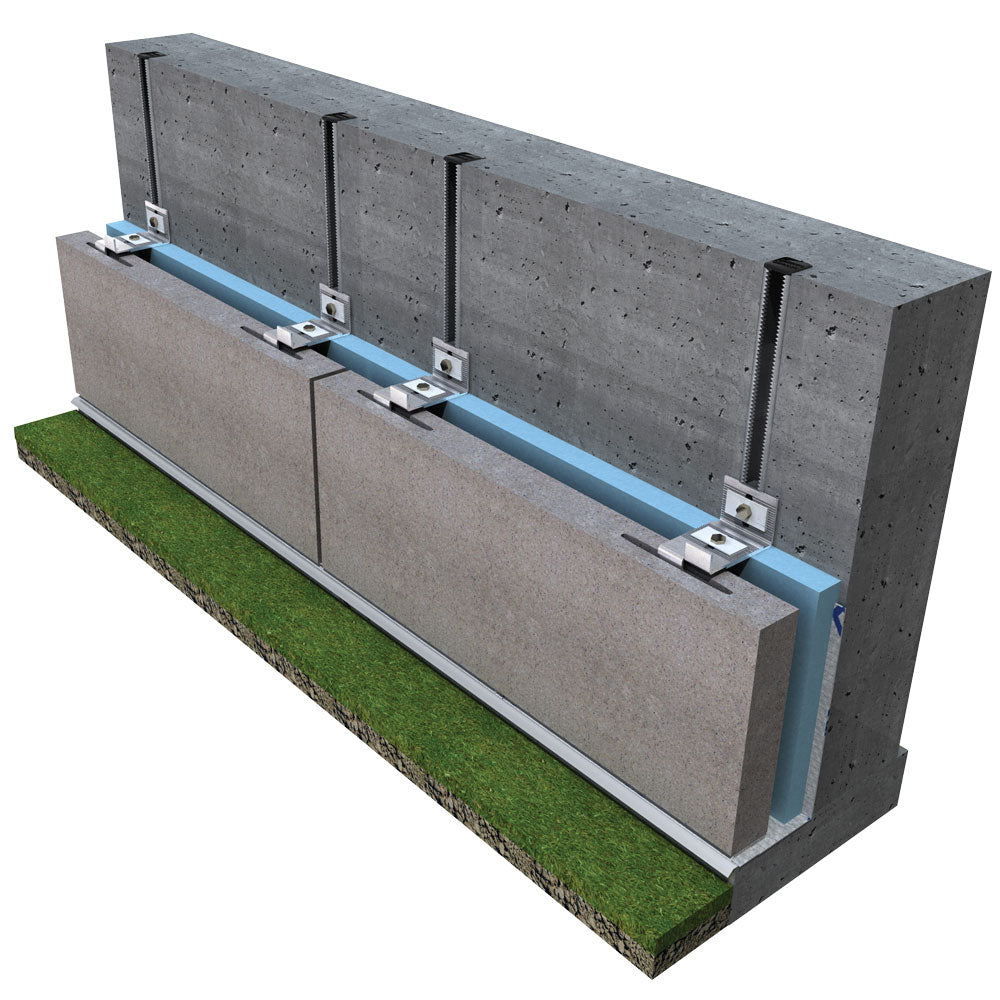

The H&B Sharktooth Insert features a serrated, tooth-like profile that resists both shear and tension loads up to 8,000 lbs/ft. Its design allows for continuous vertical adjustment along virtually the entire length of the insert and accommodates in/out movement while maintaining full load-bearing capacity. Fabricated in lengths from 3″ to 12′-0″ (custom lengths and radiused shapes available), it is ideal for high-strength anchorage in masonry, concrete, or stone applications.

Features:
  • Serrated shark-tooth design resists high vertical shear loads (eliminates vertical slip from inadequate bolt torque).
  • Continuous vertical adjustment along full length.
  • Rebar interference not an issue (unlike post-installed expansion bolts).
  • Additional rebar hairpins not required to develop working loads.
  • No welded connections required—nut or bolt into insert allows easy installation and adjustment.
  • Bolting hardware is U.S. standard thread (metric available upon request).
  • Custom designs available for radiused or project-specific applications.
Dimensions:
  • Profile: 2″ × 2″ × ¼″ thick
  • Stud: ½″ dia × 3″ long
  • Lengths: 3″, 4″, Custom
Available Finishes:
  • Hot-Dip Galvanized carbon steel
  • Stainless Steel Type 304 (Type 316 available on special order)
Hardware material
Size

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
