HB-5213 Adjustable Veneer Anchors

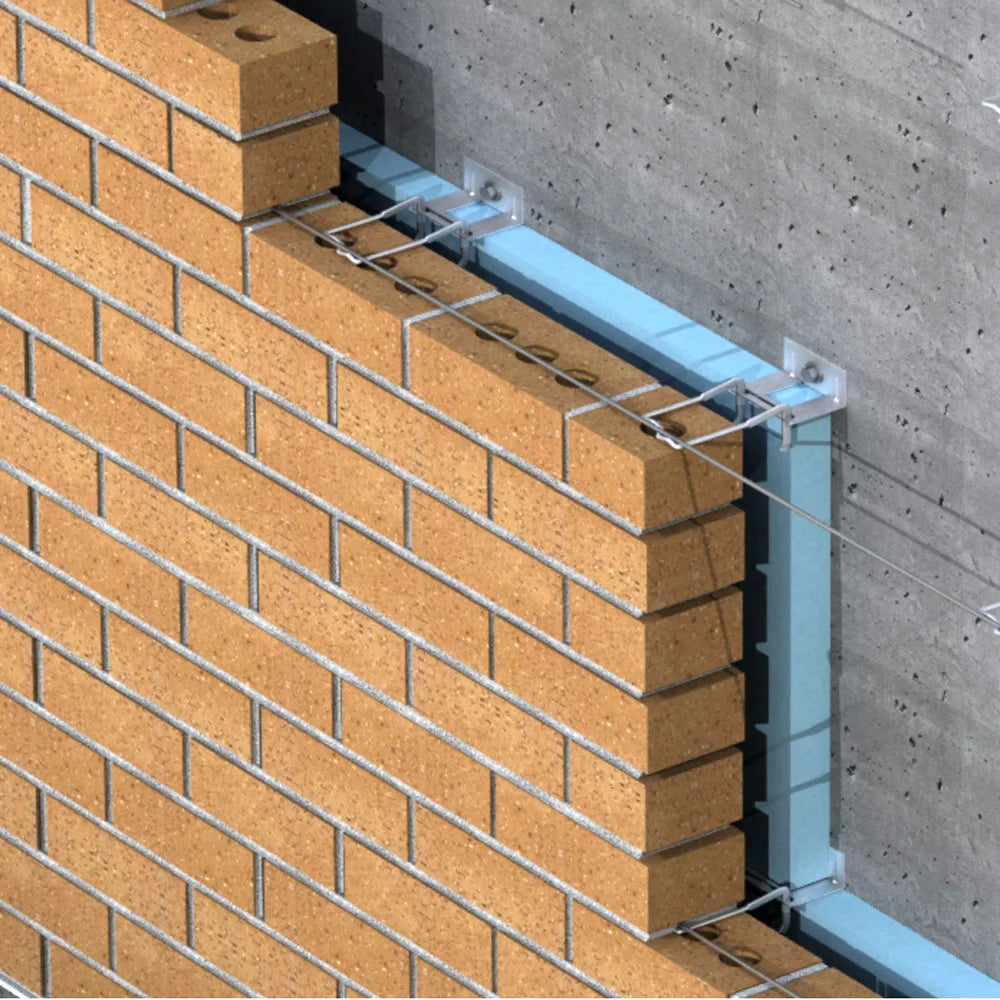

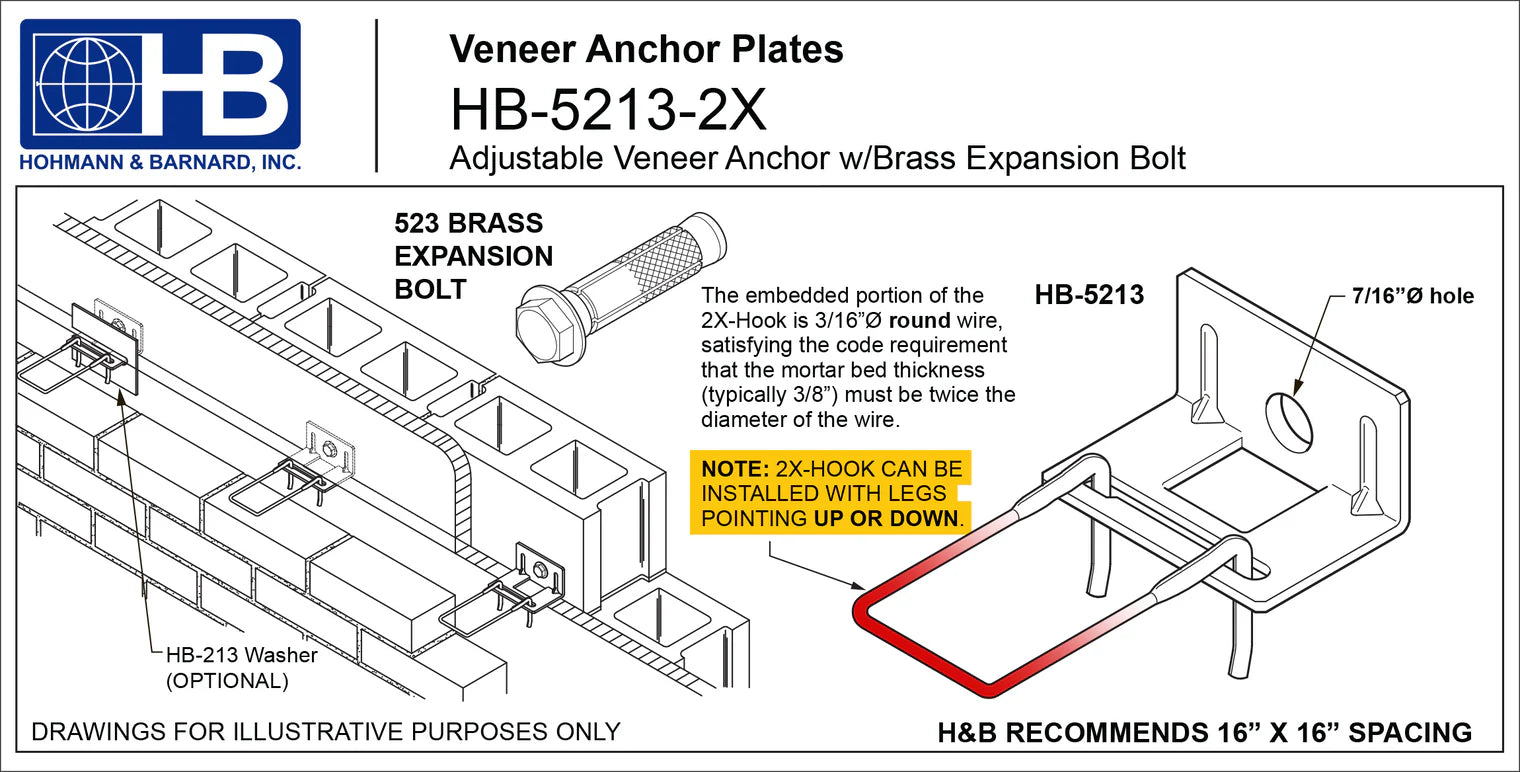

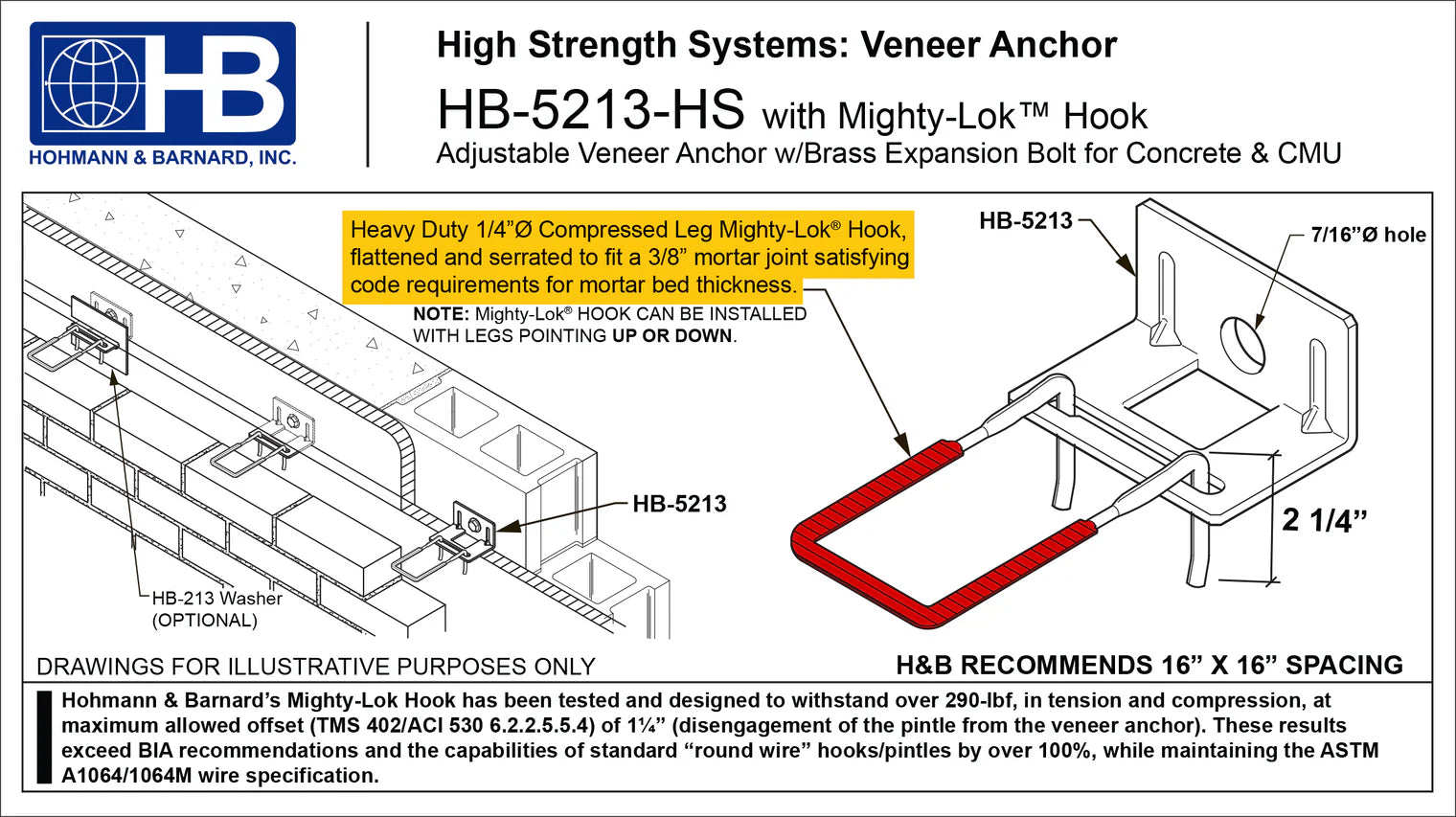

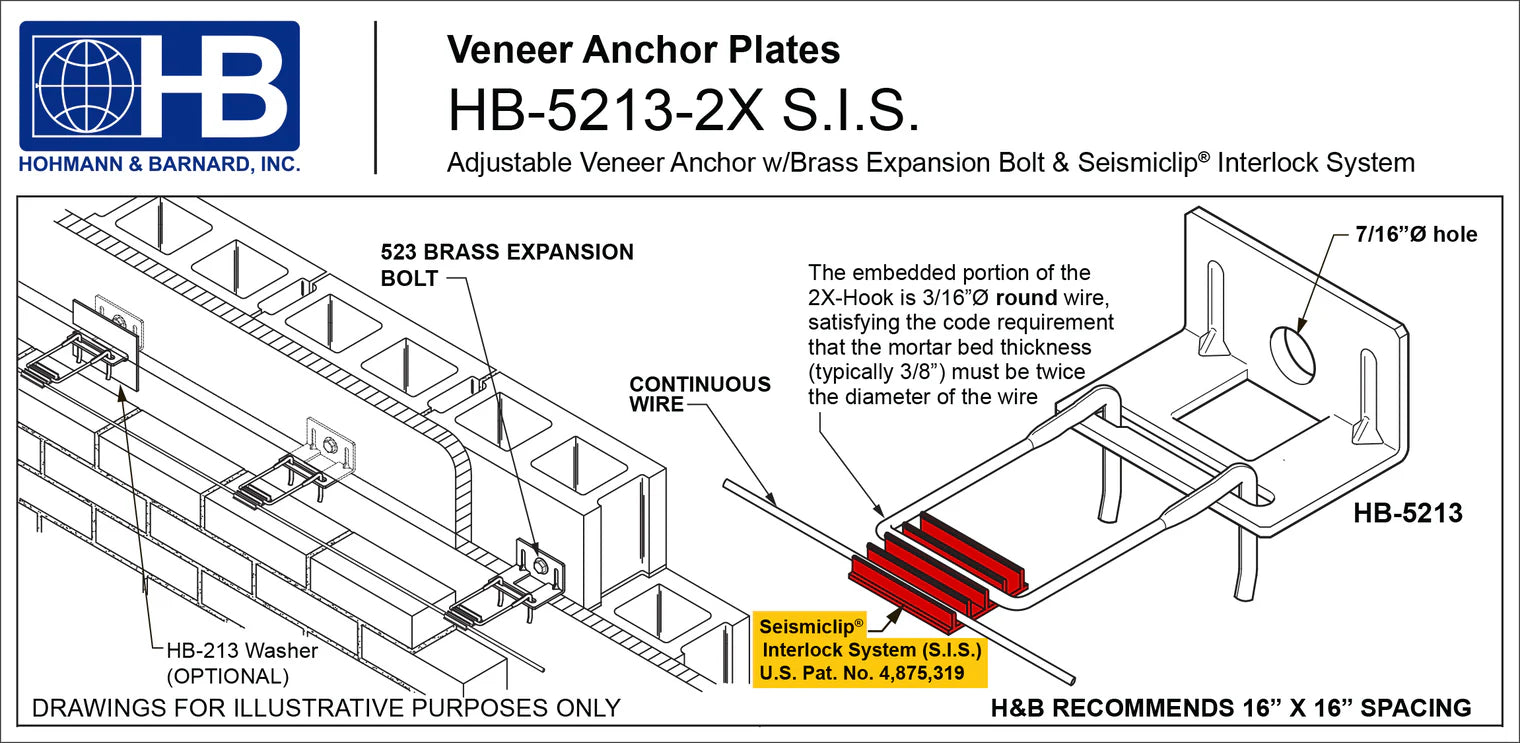

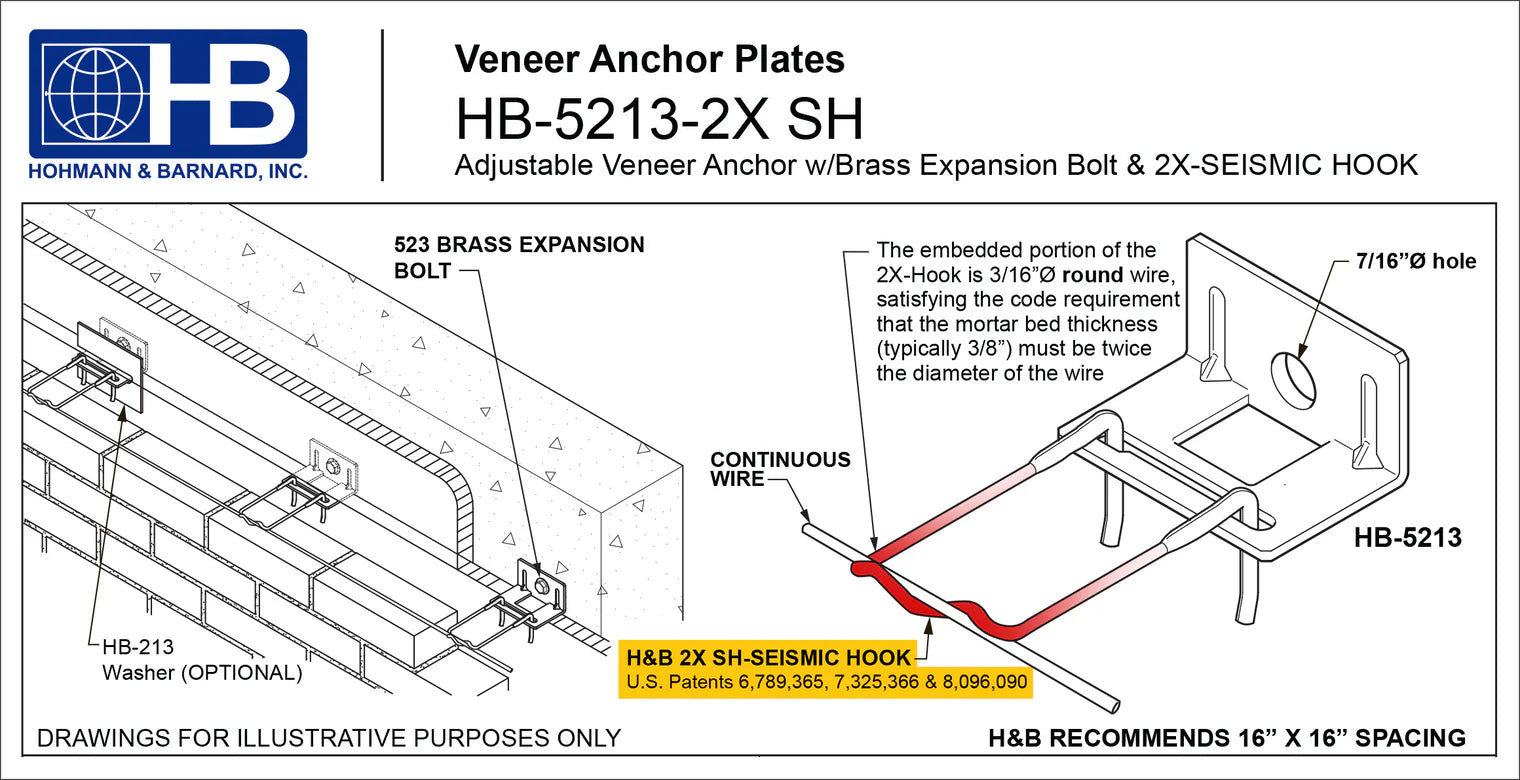

The HB-5213 Adjustable Veneer Anchor is designed to securely anchor masonry to concrete, block, or brick while accommodating rigid insulation up to 6″ (75 mm) thick. Engineered for superior performance, the system features the innovative compressed-leg 2X-HOOK™, tested to withstand over 200-lbf in tension or compression at the maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4″, exceeding BIA recommendations and outperforming standard round-wire pintles by over 100%.

• Withstands over 200-lbf in both tension and compression.
• Exceeds BIA recommendations for masonry anchoring systems.
• 1-1/4″ maximum allowable eccentricity ensures secure attachment.

• 7/16″ Ø hole designed for use with 523 Brass Expansion Bolt.
• Eyelets prevent excessive in-and-out movement beyond tolerance limits.
• 2X-HOOK™ embedded portion meets ACI mortar joint code requirements.

• Suitable for masonry, brick, CMU, and concrete backup walls.
• Legs can be installed pointing either up or down.
• Optional HB-213 Washer available for insulation retention support.

• 1-1/4″

• 7/16″ Ø

• Hot-Dip Galvanized
• Type 304 Stainless Steel
• Type 316 Stainless Steel (Special Order)

• 12 Gauge
• 14 Gauge

• Brick
• Concrete
• CMU

• 0″, 1″, 1-1/2″, 2″, 2-1/2″, 3″, 3-1/2″, 4″, 4-1/2″, 5″, 5-1/2″, 6″

• 3/4″
