2X-Hook™

$0.33
Shipping calculated at checkout.

/per piece

Sold by the piece, packaged in 350-piece boxes.
SUBMITTAL SHEETS
SDS, LEED, and OTHER DOWNLOADS
PRODUCT SPECIFICATIONS

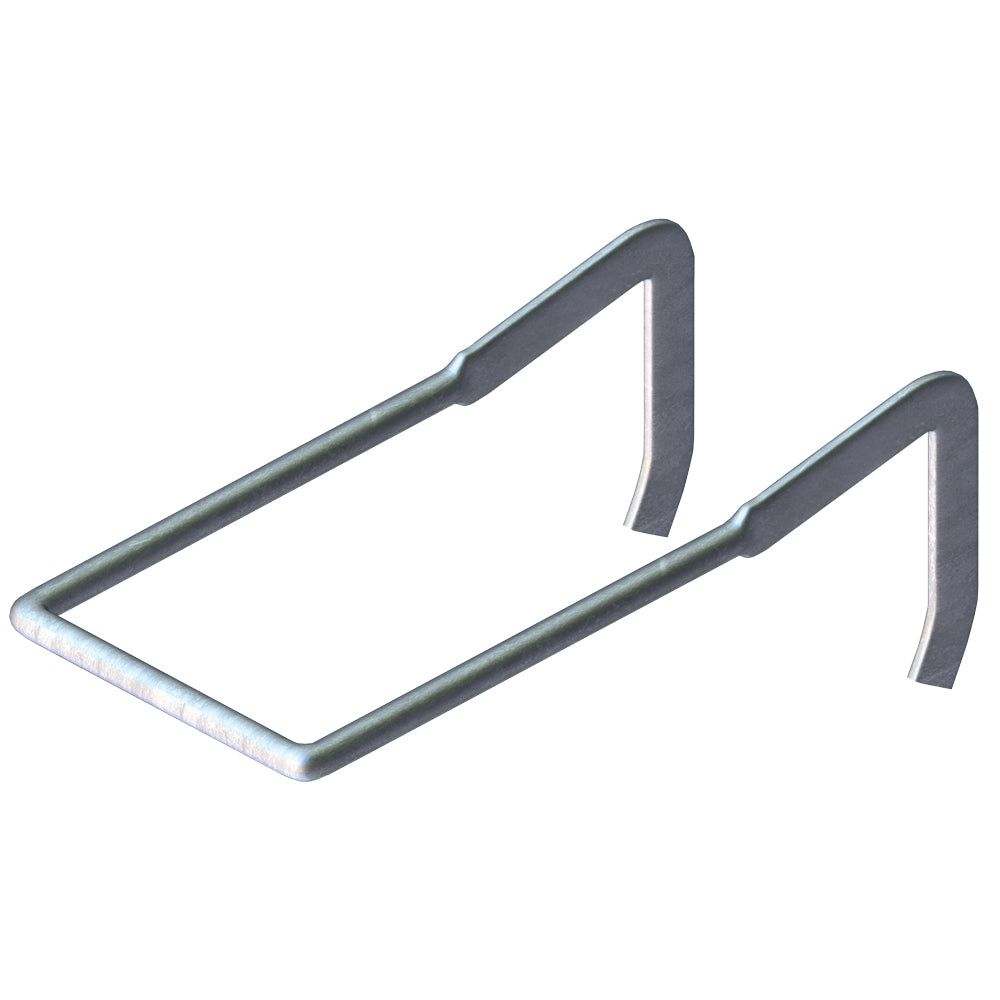

The 2X-HOOK™ is a high-performance masonry anchor designed for superior tension and compression strength. Tested to withstand over 200-lbf at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4″, the 2X-HOOK™ exceeds BIA recommendations and outperforms standard round wire pintles by more than 100%. Its compressed-leg design ensures enhanced load-bearing capacity while maintaining vertical adjustability and flexibility for installation.

Exceptional Load Resistance:
  • Withstands over 200-lbf in tension or compression at 1-1/4″ maximum offset.
  • Outperforms standard round wire pintles by over 100%.
Flexible Installation:
  • 2X-HOOK™ can be installed with legs pointing up or down.
  • Allows for easy vertical adjustment during construction.
Code Compliance:
  • 3/16″ Ø embedded wire satisfies ACI code for 3/8″ mortar bed thickness.
  • Patented under U.S. Patent No. 8,613,175; test results available upon request.
Wire Diameter:
  • 3/16″ Ø
Vertical Adjustability:
  • 1-1/4″
Available Lengths:
  • 3″
  • 4″
  • 5″
  • 6″
  • 7″
  • Custom lengths available upon request
Available Finishes:
  • Hot-Dip Galvanized
  • Type 304 Stainless Steel
Material Recommendation:
  • H&B recommends Stainless Steel for maximum corrosion resistance.
Material
Variation

*** If you require mill certs or domestic materials you must specify in your order notes in the cart. Orders without special requests for mill certs or domestic materials will be given standard materials and no certs.***
